Description

1. 5 Busbar solar cell: 5busbar solar cell adopts new technology to improve the efficiency of modules, offers a better aesthetic appearance, making it perfect for rooftop installation
2. High Efficiency: Higher module conversion efficiency(up to 20.58%) benefit from half cell structure(low resistance characteristic)
3. PID Resistance: Excellent anti-PID performance guarantee limited power degradation for mass production
4. Low-light Porformance: Advanced glass and cell surface textured design ensure excellent performance in low-light environment
5. Servere Weather Resillience: Certified to withstand wind load(2400 pascal) and snow load(5400 pascal)
6. Durability Against Extreme Environmental Conditions: High salt mist and ammonia resistance certified by TUV NORD

Features

EAZY INSTALLATION:

mount kit installs in less than one minute.

LEAK-PROOF:

Virtually leak-proof engineering and design.

HIGH CAPACITY.

support 300+MW in installed capacity!

Specifications

Module Type NV 395M-72H NV 400M-72H NV 405M-72H NV 410M-72H NV 415M-72H
Maximum Power (Pmax) 395Wp 400Wp 405Wp 410Wp 415Wp
Maximum Power Voltage (Vmp) 40.26V 40.48V 40.70V 40.91V 41.12V
Maximum Power Current (Imp) 9.81A 9.88A 9.95A 10.02A 10.09A
Open-circuit Voltage (Voc) 49.35V 49.68V 50.01V 50.33V 50.66V
Short-circuit Current(lsc) 10.26A 10.32A 10.38A 10.44A 10.50A
Module EfficiencySTC(%) 19.63% 19.88% 20.13% 20.38% 20.63%
Operating Temperature°C 40°C~+85°C
Maximum System Voltage 1000/1500VDC (IEC
Maximum Series Fuse Rating 20A
Power Tolerance 0~+3%
Temperature Coefficients of Pmax -0.37%/°C
Temperature Coefficient of Voc -0.29%/°C
Temperature Coefficients of Isc 0.048%/°C
Nominal Operating Cell Temperature 45±2°C
STC Irradiance 1000W/m
AM 1.5
Cell Temperature 25°C

Pictures

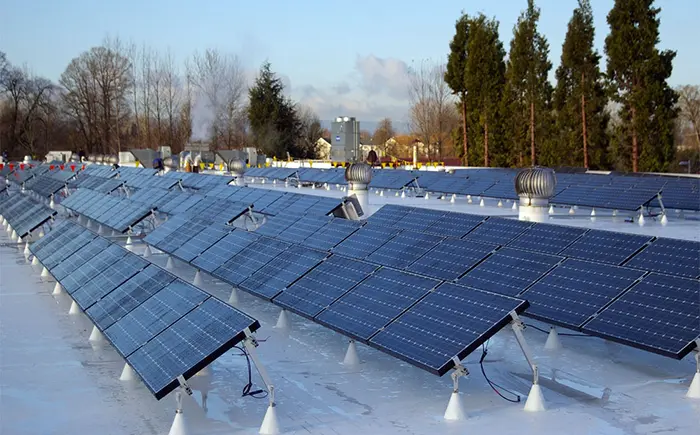

  • Photovoltaic Power Station solar panel Mounting System

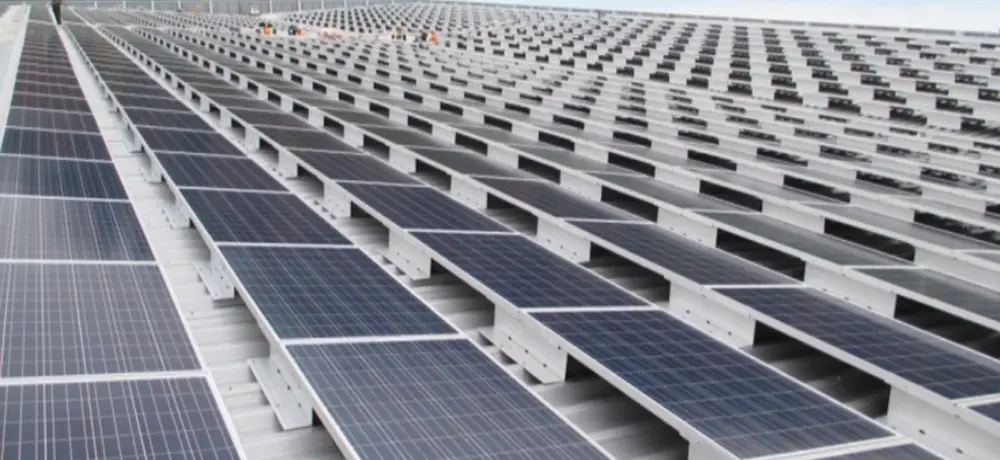

  • Photovoltaic Power Station solar panel Mounting System

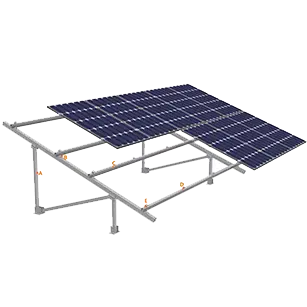

  • Photovoltaic Power Station solar panel Mounting System
