Description

This battery is really the latest state of the art technology in rechargeable.

It is extremely thin, light weight and super thin compared to any rechargeable chemistry.

Low weight, small size but huge capacity.

The other advantage of the Lithium Polymer technology is the very low self discharge .

The size and capacity is customization

-40ºC to +80ºC working temperature

Nominal voltage 3.8V, Charging cutoff voltage 4.25V

Features

Rechargeable high volume Lithium-ion Battery

WIth the best ingredients and advanced compaction technology, to ensure the highest desity and capacity in the smallest size.

High capability,Lightweight,Low internal resistance

Pure cobalt materials, voltage difference tolerance<0.02V, internal resistance<3mΩ.

Excellent safety performance,Excellent discharge performance

With Seiko IC, PCM assembled for charge, dicharge, short-circuit and temperature protection.

Specifications

Serial number Battery
Series

Model

Typical Capacity

Min. Capacity

Impedance

Nominal Voltage

Dimension

Weight

Tab Distance
/mAh /mAh /mΩ /V Max Max Max 典型g mm
1 XX1225 031225 55 50 ≤500 3.7 3.2 12.5 25.5 1.2 3.5~5.5
14 381225 80 74 ≤300 3.7 3.9 12.5 25.5 1.6 3.5~6.5
15 041225 90 85 ≤350 3.7 3.9 12.5 25.5 1.7 3.5~6.5
17 051225 110 100 ≤280 3.7 5.0 12.5 25.5 2.6 3.5~5.5
18 061225 100 105 ≤250 3.7 6.2 12.5 25.5 2.7 3.5~5.5
19 651225 130 130 ≤280 3.7 6.7 12.5 25.5 2.7 3.5~5.5
21 XX1230 031230 75 70 ≤400 3.7 3.20 12.5 30.5 1.5 3.5~5.5
351230 85 75 ≤350 3.7 3.7 12.5 30.5 1.9 3.5~5.5
041230 100 92 ≤300 3.7 4.2 12.5 30.5 2.0 3.5~5.5
451230 135 130 ≤200 3.7 4.5 12.5 30.5 3.0 4~6
051230 130 120 ≤220 3.7 5.2 12.5 30.5 2.9 3.5~5.5
551230 140 130 ≤200 3.7 5.7 12.5 30.5 3.0 3.5~5.5
22 XX1235 031235 90 80 ≤310 3.7 3.0 12.5 35.5 1.9 3.5~5.5
041235 120 100 ≤260 3.7 4.2 12.5 35.5 2.7 3.5~5.5
451235 130 120 ≤220 3.7 4.5 12.5 35.5 2.9 3.5~5.5
051235 150 150 ≤150 3.7 5.1 12.5 35.5 3.2 3.5~5.5
551235 180 180 ≤160 3.7 5.4 12.5 35.5 3.8 3.5~5.5
061235 190 170 ≤180 3.7 6.2 12.5 35.5 4.3 3.5~5.5
651235 150 150 ≤150 3.7 5.8 12.5 35.5 4.8 3.5~5.5
071235 240 220 ≤130 3.7 7.2 12.5 35.5 4.6 3.5~5.5
41 XX1730 031730 100 100 ≤300 3.7 3.2 17.5 30.5 2.9 8±2
451730 170 160 ≤180 3.7 4.7 17.5 30.5 3.3 7±2
451730 190 180 ≤180 3.7 4.7 17.5 30.5 3.7 7±2
051730 200 190 ≤170 3.7 5.2 17.5 30.5 4.3 6±2
551730 230 210 ≤160 3.7 5.7 17.5 30.0 5.0 6±2
51 XX2025 032025 110 105 ≤250 3.7 3.2 20.3 25.5 2.8 10.5~12.5
042025 150 150 ≤200 3.7 4.2 20.3 25.5 3.4 9~11
422025H 180 170 ≤200 3.7 4.4 20.3 25.5 3.9 9.5~11.5
052025 180 160 ≤200 3.7 5.2 20.3 25.5 3.9 7±2
552025 240 200 ≤150 3.7 5.7 20.3 25.5 4.6 7±2
062025 250 250 ≤150 3.7 6.2 20.3 25.5 4.9 7.5~9.5
092025 360 340 ≤120 3.7 8.8 20.3 25.5 6.8 6±2
52 XX2030 032030 130 120 ≤260 3.7 3.2 20.5 30.5 2.2 8±2
382030 180 170 ≤170 3.7 4.0 20.5 30.5 3.9 8±2
042030 180 180 ≤180 3.7 4.2 20.5 30.5 4.8 9~11
052030 260 260 ≤150 3.7 5.2 20.5 30.5 5.2 9~11
552030 280 260 ≤120 3.7 5.7 20.3 30.5 5.6 8~10
062030 300 280 ≤110 3.7 6.2 20.3 30.5 6.0 7.5~9.5
072030 400 400 ≤120 3.7 6.9 20.3 30.5 6.8 7~9
092030 500 500 ≤90 3.7 9.2 20.3 30.5 8.5 4~6.5
53 XX2035 032035 160 160 ≤180 3.7 3.2 20.3 35.5 3.4 10.5~12.5
352035 190 180 ≤150 3.7 3.7 20.3 35.5 4.3 8±2
042035 240 220 ≤150 3.7 4.0 20.3 35.5 4.6 9~11
052035 320 310 ≤100 3.7 5.0 20.3 35.5 6.4 8.5~10.5
532035 340 320 ≤100 3.7 5.5 20.3 35.5 6.7 7±2
062035 400 400 ≤100 3.7 6.3 20.3 35.5 8.1 7.5~9.5
952036 650 650 ≤80 3.7 9.5 20.3 36.0 11.7 4~6.5
70 XX2530 382530 240 230 ≤150 3.7 4.0 25.5 30.5 4.6 13±2
452530 300 280 ≤100 3.7 4.5 25.5 30.5 6.0 12.5~14.5
052530 400 370 ≤150 3.7 5.5 25.5 30.5 6.8 13~15
552530 380 350 ≤80 3.7 5.7 25.5 30.5 7.8 10±2
062530 450 450 ≤80 3.7 6.5 25.5 30.5 8.1 12~14
652530 440 420 ≤100 3.7 6.7 25.5 30.5 8.8 9±2
072530 450 460 ≤100 3.7 7.0 25.5 30.5 8.3 10.5~12.5
  082530 600 600 ≤80 3.7 8.2 25.5 30.5 13.0 9~11
73 XX2535 032535 220 220 ≤180 3.7 2.9 25.3 35.3 4.2 12~14
352535 260 240 ≤150 3.7 3.7 25.3 35.3 5.0 12±2
382535 320 300 ≤120 3.7 4.0 25.3 35.3 6.8 12±2
042535 320 320 ≤120 3.7 4.2 25.3 35.3 6.8 11.5~13.5
052535 400 390 ≤100 3.7 5.2 25.3 35.3 8.1 11~13
062535 500 500 ≤90 3.7 5.8 25.5 35.5 9.7 12~14
652535D2C 380 390 ≤100 3.7 6.3 25.5 35.5 10.0 11.5~13.5
072535 550 550 ≤80 3.7 6.7 25.5 35.5 10.7 10~12
082535 750 700 ≤80 3.7 8.2 25.5 35.5 14.6 9~11
74 XX2540 452540 420 400 ≤80 3.7 4.7 25.3 40.5 7.8 11.5~13.5
062540 550 570 ≤80 3.7 6.2 25.3 40.3 10.8 11~13
99 XX3040 033040 320 340 ≤120 3.7 3.2 30.5 40.5 7.5 19~21
053040 300 350 ≤100 3.7 4.8 30.5 40.5 9.0 17~19
053040 560 530 ≤80 3.7 5.2 30.5 40.5 10.8 15±2
523040 600 580 ≤80 3.7 5.4 30.5 40.5 12.2 15±2
553040 600 580 ≤80 3.7 5.7 30.5 40.5 12.2 15±2
753040 850 850 ≤60 3.7 7.7 30.5 40.5 16.5 11±2
101 XX3048 033048 380 360 ≤100 3.7 3.2 30.5 48.5 7.5 16±2
353048 450 420 ≤90 3.7 3.7 30.5 48.5 8.5 16±2
043048 540 520 ≤80 3.7 4.2 30.5 48.5 10.5 15±2
053048 700 700 ≤60 3.7 5.2 30.5 48.5 14.0 14±2
553048 750 730 ≤60 3.7 5.6 30.5 48.5   14±2
063048 880 850 ≤60 3.7 6.0 30.5 48.5 17.0 14±2
073048 1000 950 ≤60 3.7 7.2 30.5 48.5 19.5 13±2
753048 1200 1050 ≤60 3.7 7.8 30.5 48.5 21.5 13±2
083048 1200 1150 ≤50 3.7 8.5 30.5 48.5 23.5 12±2
103048 1500 1400 ≤50 3.7 10.3 30.5 48.5 29.0 10±2
104 XX3060 703060 1300 1200 ≤50 3.7 7.2 30.5 60.5 25.3 13±2
903060 1700 1700 ≤40 3.7 9.2 30.5 60.5 33.1 12±2
129 XX3448 063448 850 820 ≤60 3.7 6.0 34.5 48.5 17.0 18±2
083448 1250 1200 ≤50 3.7 8.0 34.5 48.5 24.5 16±2
083448 1300 1300 ≤50 3.7 8.2 34.5 48.5 25.3 16±2
103448 1600 1600 ≤50 3.7 9.2 34.5 48.5 31.0 14.5±2
130 XX3450 383450 650 620 ≤60 3.7 4.0 34.5 50.5 12.8 20±2
483450 820 800 ≤60 3.7 5.0 34.5 50.5 15.5 19±2
483450 900 880 ≤70 3.7 4.8 34.5 50.5   20±3
053450 850 800 ≤60 3.7 5.2 34.5 50.5 16.8 19±2
533450 1000 950 ≤60 3.7 5.4 34.5 50.5 19.4 18±2
053450HT 900 850 ≤60 3.7 5.2 34.5 50.5 17.5 18±2
063450L 850 850 ≤60 3.7 5.8 34.5 50.5 17.8 17±2
063450 1100 1050 ≤60 3.7 6.2 34.5 50.5 21.5 17±2
083450 1250 1200 ≤60 3.7 8.0 34.5 50.5 24.5 14±2
853450 1400 1450 ≤50 3.7 8.3 34.5 50.5 27.3 15±2
853450 1500 1400 ≤50 3.7 8.8 34.5 50.5 29.0 15±2
093450 1050 1050 ≤50 3.7 8.8 34.5 50.5   14±2
093450 1100 1080 ≤50 3.7 9.3 34.5 50.5   14±2
093450 1200 1150 ≤50 3.7 9.0 34.5 50.5   14±2
103450 1800 1800 ≤40 3.7 10.0 34.5 50.5 35.0 14±2
133 XX3460 033560 600 580 ≤80 3.7 3.3 35.5 60.0 11.5 21±2
483560 1000 950 ≤60 3.7 5.0 35.5 60.0   18±2
063460 1250 1250 ≤50 3.7 6.4 34.3 60.5   16±2
155 XX3759 033759 600 600 ≤70 3.7 3.2 37.5 59.5 11.6 23±2
043759 900 850 ≤50 3.7 4.2 37.5 59.5 17.5 22±2
053759HT 1100 1000 ≤50 3.7 5.5 37.5 59.5 22.5 22±2
053759 1200 1100 ≤50 3.7 5.2 37.5 59.5 23.0 22±2
583759 1400 1400 ≤50 3.7 5.9 37.5 59.5   20±2
170 XX4050 384050HT 800 750 ≤60 3.7 4.0 40.5 50.5 15.7 26±2
054050 1000 900 ≤50 3.7 5.2 40.5 50.5 19.5 25±2
554050 1100 1000 ≤50 3.7 5.7 40.5 50.5 21.5 24±2
064050 1200 1150 ≤50 3.7 6.2 40.5 50.5 23.0 23±2
654050 1400 1300 ≤50 3.7 6.7 40.5 50.5 27.0 23±2
104050 2200 2200 ≤40 3.7 10.0 40.5 50.5 42.5 18±2
228 XX5080 035080 1200 1100 ≤50 3.7 3.2 50.0 80.5 23.0 35±2
035080 1250 1220 ≤40 3.7 3.2 50.0 80.5   35±2
055080 2000 2000 ≤35 3.7 5.2 50.0 80.5 38.0 33±2
065080 2400 2400 ≤40 3.7 6.2 50.5 80.5 46.0 18±2
085080 3500 3500 ≤40 3.7 8.0 50.5 80.5 65.0 31±2
233 XX50100 4050100 2050 2000 ≤40 3.7 4.2 50.3 100.5   24±2
0550100 2700 2650 ≤30 3.7 5.2 50.3 100.5   34±2
0750100 2500 2500 ≤35 3.7 6.8 50.0 100.5   18±2
0850100 4100 4000 ≤35 3.7 8.1 50.0 100.5 77.0 30±2
274 XX6080 036080 1200 1300 ≤50 3.7 3.7 60.5 79.5   24±2
456080 1000 1000 ≤50 3.7 4.0 60.5 79.5 30.0 31±2
456080 1600 1600 ≤40 3.7 4.0 60.5 79.5 40.0 31±2
056080 2400 2400 ≤40 3.7 4.8 60.5 79.5   36±2

Pictures

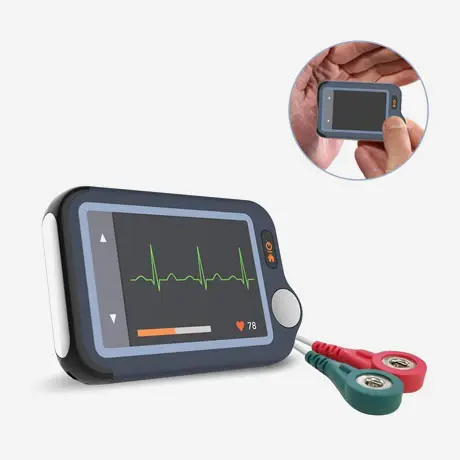

  • Medical device
