Description

Our products have passed UL,CE and other national safety certifications.

The lithium-ion battery is made of high-quality cells, with good safety performance, built-in BMS protection board as well as overcharge, over discharge, overload, short circuit protection

The ebike battery’s charge cycle exceeds 1000 times, life expectancy of up to 5 years

The battery can work at a temperature of -20~60°C, and the discharge efficiency can reach 95%.TThe The battery warranty is one year

Features

Long Battery Life

Using high-quality lithium ion battery, combined with high-strength BMS protection board, battery charge and discharge cycle up to 1000 times, life expectancy of up to 5 years, when the red light of charger turns green, it means fully charged.

Modern design

Modern design, battery can be lifted, easy to install and disassemble. LED battery level light can inform you of charging in time,avoid battery power off when riding, and the battery has waterproof and sand protection, you don’t have to worry about riding,The keys use to lock the battery on the rack.

Safety and Environmental Protection

The lithium-ion battery is made of high-quality domestic cells, with good safety performance, built-in BMS protection board as well as overcharge, over discharge, overload, short circuit protection. Our lithium-ion batteries have undergone thousands of repeated discharges and safety tests

Specifications

Model Voltage (V) Capacity (mAh) Combine (国产) Combine (进口) Max. discharge current Case Photo Switch LED indicator Connector Dimensions (T*W*Lmm) N.W.
ABS Housing&Indicator&Switch
NV-18650122200ABS 12V 2200mAh 3S1P / 1100mA ABS
on/off Red DC 23*60*100/C 185g
NV-18650124400ABS 12V 4400mAh 3S2P 3S2P 2200mA ABS on/off Red DC 25.8*85.5*146/C 264g
NV-18650126600ABS 12V 6000mAh /进口6400mAh 3S2P 3S2P 3000mA ABS on/off 4 DC 25.8*85.5*146/C 264g
NV-18650127800ABS 12/9/5V 7800mAh 3S3P / 2500mA ABS on/off 4 DC 39*79*133/C 500g
NV-18650128800ABS 12/9/5V 8800mAh 3S4P / 2500mA ABS on/off 4 DC 39*79*133/C 500g
NV-186501212000ABS 12/9/5V 13200mAh 3S6P 3S2P 3000mA ABS on/off 4 DC 39*79*133/C 600g
EP Housing&Single indicator&Switch
NV-18650124400EP 12V 4400mAh 3S2P 2200mA EP
on/off Red DC 22*70*135/C 320g
NV-18650126600EP 12V 6600mAh 3S3P 3000mA EP on/off Red DC 39*70*106/C 455g
NV-18650128800EP 12V 8800mAh 3S4P 3000mA EP On/off Red DC 40*70*135/C 590g
NV-186501211000EP 12V 11000mAh 3S5P 3000mA EP On/off Red DC 40*70*135/C 705g
NV-186501213200EP 12V 13200mAh 3S6P 3000mA EP On/off Red DC 59*70*117/C 850g
NV-186501215400EP 12V 15400mAh 3S7P 3000mA EP On/off Red DC 59*70*135/C 990g
NV-186501217600EP 12V 17600mAh 3S8P 3000mA EP On/off Red DC 59*70*154/C 1130g
NV-186501219800EP 12V 19800mAh 3S9P 3000mA EP On/off Red DC 59*70*172/C 1270g
NV-186501222000EP 12V 22000mAh 3S10P 3000mA EP On/off Red DC 59*70*190/C 1410g
NV-186501233000EP 12V 33000mAh 3S15P 3000mA EP On/off Red DC 59*70*280/C 2120g
NV-186501241800EP 12V 41800mAh 3S19P 3000mA EP On/off Red DC 59*70*355/C 2680g
NV-186501252800EP 12V 52800mAh 3S24P 3000mA EP On/off Red DC 59*70*445/C 3885g
PVC Housing 12V
NV-18650122200PVC 12V 2200mAh 3S1P 3S1P 1100mA PVC
NA NA DC 19*70*56/C 185g
NV-18650124400PVC 12V 4400mAh 3S2P 3S2P 2200mA PVC NA NA DC 36*70*64/C 270g
NV-18650126000PVC 12V 6000mAh 3S2P 3S2P 3000mA PVC NA NA DC 36*70*64/C 315g
NV-18650126600PVC 12V 6600mAh 3S3P 3S3P 3300mA PVC NA NA DC 54*70*64/C 405g
NV-18650128800PVC 12V 8800mAh 3S4P 3S4P 4400mA PVC NA NA DC 54*70*83/C 540g
NV-186501210500PVC 12V 10500mAh / 3S3P 3000mA PVC NA NA DC 54*70*64/C 555g
NV-186501211000PVC 12V 11000mAh 3S5P 3S5P 3000mA PVC NA NA DC 54*70*101/C 675g
NV-186501215200PVC 12V 15400mAh 3S7P 3S4P 3000mA PVC NA NA DC 54*70*126/C 915g
NV-186501215000PVC 12V 15000mAh / 3S5P 3000mA PVC NA NA DC 54*70*101/C 805g
NV-186501217600PVC 12V 17600mAh 3S8P 3S8P 3000mA PVC NA NA DC 54*70*144/C 1065g
NV-186501219800PVC 12V 19800mAh 3S9P 3S9P 3000mA PVC NA NA DC 54*70*162/C 1215g
NV-186501222000PVC 12V 22000mAh 3S10P 3S6P 3000mA PVC NA NA DC 54*70*180/ 54*70*118/C 1370g
PVC Housing 24V
NV-18650242200PVC 24V 2200mAh 7S1P 7S1P 2200mA PVC
NA NA DC 36*70*75/C 400g
NV-18650244000PVC 24V 4400mAh 7S2P 7S2P 3000mA PVC NA NA DC 36*70*130/C 700g
NV-18650246600PVC 24V 6600mAh 7S3P 7S3P 3000mA PVC NA NA DC 60*70*130/C 1050g
NV-18650248800PVC 24V 8800mAh 7S4P 7S4P 3000mA PVC NA NA DC 75*70*130/C 1400g
NV-186502411000PVC 24V 11000mAh 7S5P 7S5P 3000mA PVC NA NA DC 90*70*130/C 1750g
NV-186502413200PVC 24V 13200mAh 7S6P 7S6P 3000mA PVC NA NA DC 115*70*130/C 2100g
PVC Housing 3.7V
NV-1022037110PVC 3.7V 110mAh 1S1P / 110mA PVC
NA NA Regular D10*H22 5g
NV-1044037300PVC 3.7V 300mAh 1S1P / 300mA PVC NA NA Regular D10*H44 12g
NV-1425037300PVC 3.7V 300mAh 1S1P / 300mA PVC NA NA Regular D14*H25 9.5g
NV-1425037900PVC 3.7V 900mAh 1S3P / 900mA PVC NA NA Regular D14*H25*3 28g
NV-1634037650PVC 3.7V 650mAh 1S1P / 650mA PVC NA NA Regular D16*H34 20g
NV-1450037800PVC 3.7V 800mAh 1S1P / 800mA PVC NA NA Regular D14*H50 22g
NV-1835037900PVC 3.7V 900mAh 1S1P / 900mA PVC NA NA Regular D18*H35 25g
NV-18650372000PVC 3.7V 2000mAh 1S1P / 2000mA PVC NA NA Regular D18*H65 50g
NV-18650372200PVC 3.7V 2200mAh 1S1P / 2200mA PVC NA NA Regular D18*H65 50g
NV-18650372600PVC 3.7V 2500mAh 1S1P / 2500mA PVC NA NA Regular D18*H65 50g
NV-18650372600PVC 3.7V 2600mAh 1S1P / 2600mA PVC NA NA Regular D18*H65 50g
NV-18650372600PVC 3.7V 3200mAh 1S1P / 3200mA PVC NA NA Regular D18*H65 55g
PVC Housing 7.4V
NV-18650742200PVC 7.4V 2200mAh 2S1P / 2200mA PVC
NA NA Regular D18*W36*H65 48g
NV-18650742500PVC 7.4V 2500mAh 2S1P / 2500mA PVC NA NA Regular D18*W36*H65 55g
NV-18650742600PVC 7.4V 2600mAh 2S1P / 2600mA PVC NA NA Regular D18*W36*H65 70g
NV-18650743000PVC 7.4V 3000mAh 2S1P 2S1P 3000mA PVC NA NA Regular D18*W36*H65 68g
NV-18650743200PVC 7.4V 3200mAh 2S1P 2S1P 3000mA PVC NA NA Regular D18*W36*H65 57g
NV-18650743350PVC 7.4V 3350mAh 2S1P 2S1P 3000mA PVC NA NA Regular D18*W36*H65 60g
NV-18650746000PVC 7.4V 6000mAh 2S2P 2S2P 3000mA PVC NA NA Regular D18*W36*H65 200g

Pictures

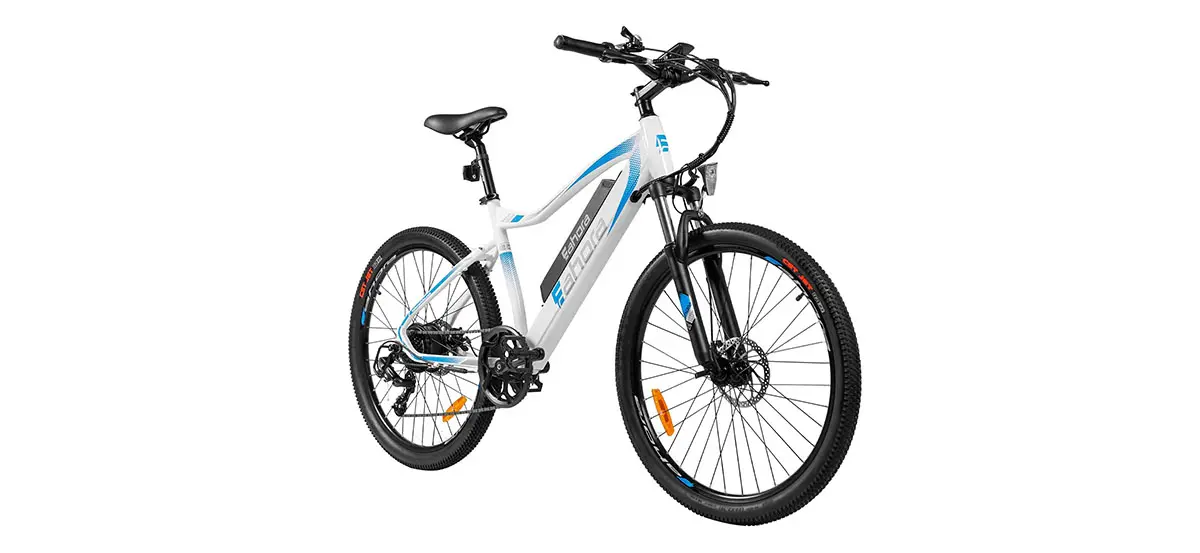

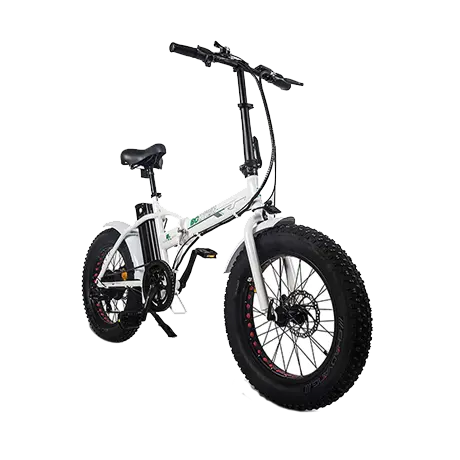

  • Electric bike
