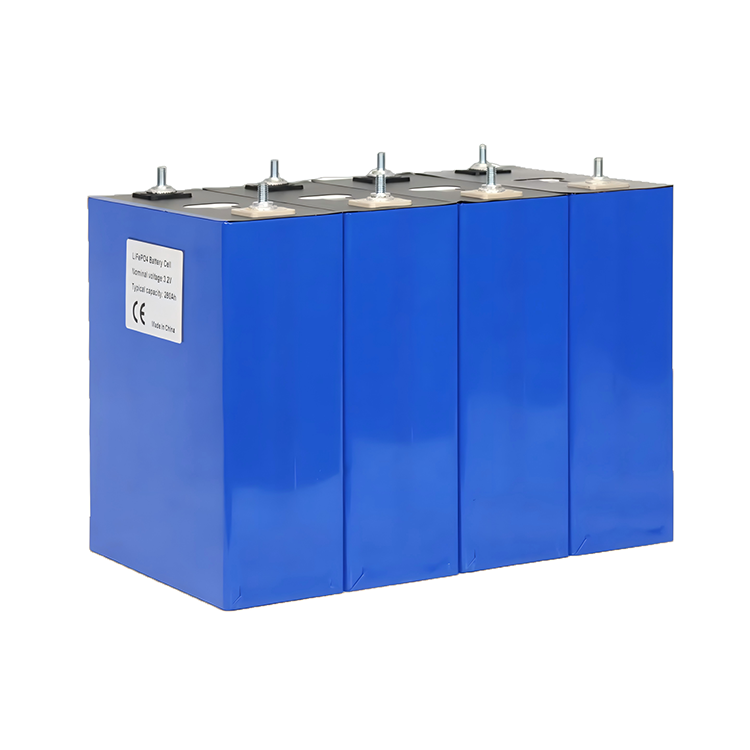

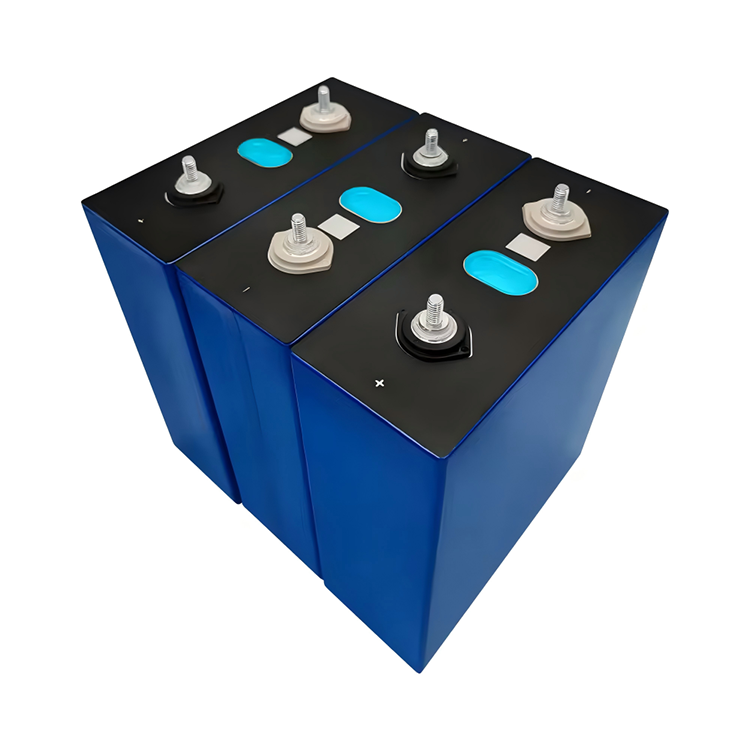

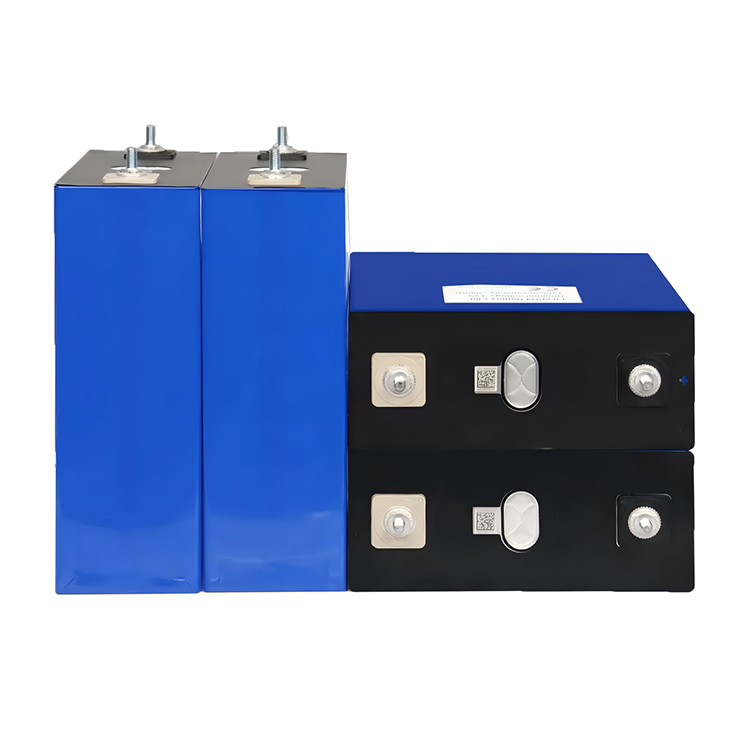

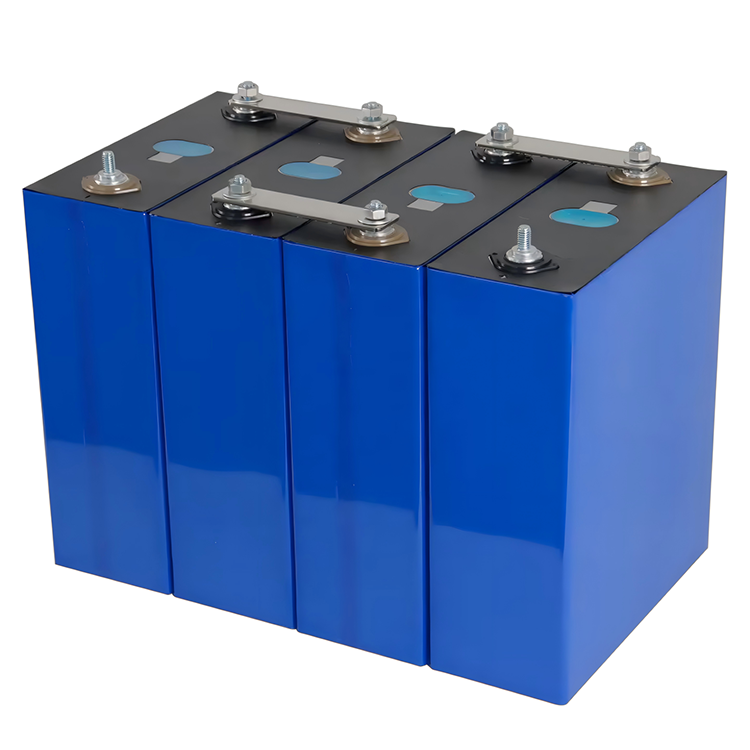

NOVACELL EVE CATL 3.2v 280ah lifepo4 battery cell prismatic lithium ion batteries Grade A

Inquire Now

Features

Brand: NOVACELL, EVE, CATL
Anode: LFP
Model: NVC-280Ah
Voltage: 3.2V
Capacity: 280Ah
Energy: 896Wh
N.W.: 5.6kg
Charge rate: 1C
Discharge rate: 3C
Size: T72*W173*L207mm

Advantages

Life cycle: 8000+ cycles
OEM/ODM: available
Discharge rate: 3C
Capacity: High
DIY: Easy
Quality: Grade A, Stable
Working temp.: -20~65°C
Certificate: BIS KC CE RoHS IEC62133 UN38.3

Application

Energy Storage
EV
AGM
Cars
Home appliances
Marines
UPS
Electric Forklift

Specification

Electrical Characteristics	Nominal Voltage	3.2V
	Nominal Capacity	280Ah
	Energy	896Wh
	Battery type	LiFePo4
	Cycle Life	8000+ cycles
	Months Self Discharge	≤3% per month at 25℃
Standard Charge	Charge Voltage	3.65±0.2V
	Charge Mode(CC/CV)	At 0℃~45℃, charged to 3.65V at constant current of 0.2C5A, and then change continuously with constant voltage of 3.65V until the current was not more than 0.02C5A.
	Standard Charge Current	140A
	Max.Charge Current	280A
Standard Discharge	Standard discharge Current	140mA
	Max. Discharge Current	840A
	Discharge Cut-off Voltage	2.5V
Environmental	Charge Temperature	0℃~45℃
	Discharging	-10℃~60℃
	Storage temperature	-5℃~35℃
	Storage Humidity	≤75% RH
	Water Dust Resistance	IP50
Mechanical	Cell	Singe cell
	Housing	Aluminum

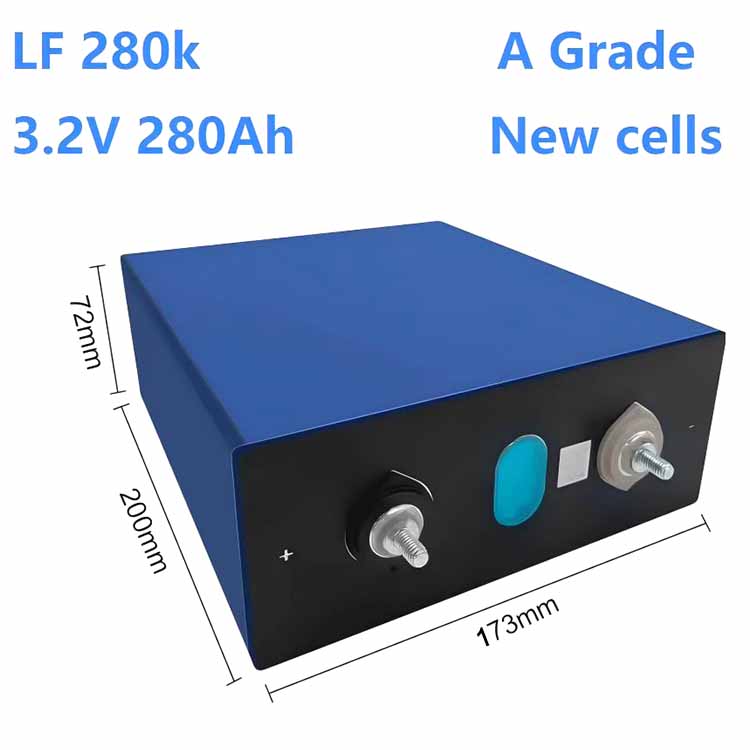

	Dimension(LWH*)	T72W173L200mm
	BMS	TBA
	N.W.:	Approx. 5.6kg

More Details

NOVACELL EVE CATL 3.2v 280ah lifepo4 battery cell prismatic lithium ion batteries Grade A is very popular for Energy storage, Home Appliances, Golf Carts, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Submarines and Forklift
