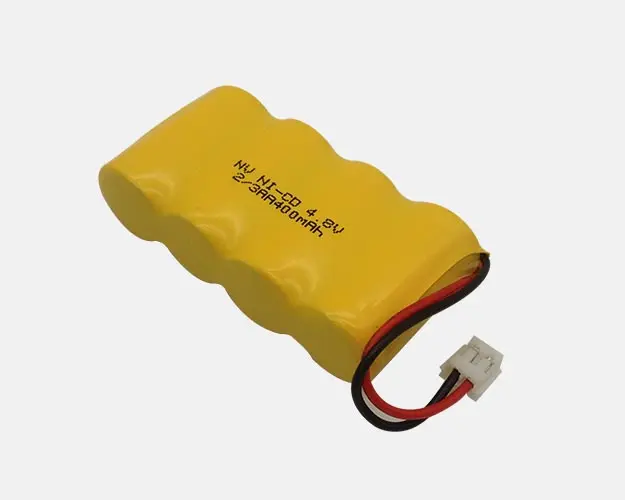

Nickel Battery

  • 1. Compared with lead-acid battery, the energy density is greatly improved, with weight energy density of 65Wh/kg and volume energy density of 200Wh/L.
  • 2. High power density, large current charge and discharge;
  • 3. Good low-temperature discharge characteristics;
  • 4. Cycle life (increased to 1000 times);
  • 5. Environmental protection and no pollution;
  • 6. Technology comparison of lithium ion battery mature.

Advantages

Long Service Life: Under normal use, NI-MH batteries can provide more than 1000 charge/discharge cycles,or 5 year of standby power.

Superior High Rate Charge/Discharge Characteristics: The cell can be fully charged in 1 hour with NI-MH specified charging conditions, and can withstand a discharge rate up to 10C

Wide Temperature Range: The cell exhibits super efficiency and durability for both high temperature and low temperature operations, at the range from -10 C-degree to 70 C-degree .

Excellent Overcharge Performance: NI-MH batteries can be continuously overcharged at 0.1Crate for 48 hours without leakage or deformation.

Good Charge Retention: After 1-Month storage at 20±5 C-degree, a fully charged cell can still deliver approx. 70% of its nominal capacity

Built-in Safety Features Against Misuse: Built-in chemical protection against polarity

Application

Audio and Video Devices: Digital cameras, Camcorders, Portable DVD, VCD , MD and CD players.

Lightings: Emergency lightings, Solar lights, Search lights and Flashlights.

Remote Control Toys: R/C Cars, R/C Ships and Model planes.

Power Tools: Electric drills, Sanders, Screwdrivers, Saws, Polishers

Other Applications: Electric bicycles, Shavers, Massagers, Electric tooth brushes, Handheld vacuum cleaners, Handheld terminals, Beauty devices

Specification

Series Model Nominal Capacity(MAH) Nominal Voltage (V) Unit Price (RMB/PC) Dimension (mm)
Diameter Height
AAA 1/3AAA 120 1.2 1.32 10.0  15.0
1/3AAA 120 9 9.78 16.7x26.5 48.5
1/3AAA 160 9 11.28 16.7x26.5 48.5
1/3F6 180 9 14.04 17.5X26.5 48.5
1/3F6 200 9 14.76 17.5X26.5 48.5
1/3F6 220 9 15.60 17.5X26.5 48.5
1/3F6 250 9 16.80 17.5X26.5 48.5
2/3AAA300 300 1.2 1.62 10.5  28.5
4/5AAA300 300 1.2 1.66 10.5  38.0
4/5AAA350 350 1.2 1.70 10.5  38.0
4/5AAA400 400 1.2 1.80 10.5  38.0
4/5AAA500 500 1.2 2.00 10.5  38.0
AAA300 300 1.2 1.45 10.5  43.0
AAA400 400 1.2 1.80 10.5  43.0
AAA500 500 1.2 2.00 10.5  43.0
AAA600 600 1.2 2.20 10.5  43.0
AAA650 650 1.2 2.30 10.5  43.0
AAA700 700 1.2 2.45 10.5  44.0
AAA750 750 1.2 2.65 10.5  44.0
AAA800 800 1.2 2.80 10.5  44.0
AAA850 850 1.2 2.95 10.5  44.0
AAA900 900 1.2 3.10 10.5  44.0
AAA950 950 1.2 3.25 10.5  44.0
5/4AAA 600 1.2 2.46 10.5  49.0
5/4AAA 700 1.2 2.76 10.5  49.0
5/4AAA 800 1.2 3.10 10.5  49.0
4/3AAA 900 1.2 3.36 10.5  67.0
4/3AAA 1000 1.2 3.72 10.5  67.0
AA 2/3AA500 500 1.2 2.22 13.9  28.8
2/3AA600 600 1.2 2.46 13.9  28.8
4/5AA700 700 1.2 2.70 13.9  43.3
4/5AA1000 1000 1.2 3.42 13.9  43.3
4/5AA1200 1200 1.2 3.90 13.9  43.3
AA300 300 1.2 1.70 13.9  49.0
AA400 400 1.2 1.99 13.9  49.0
AA500 500 1.2 2.28 13.9  49.0
AA600 600 1.2 2.52 13.9  49.0
AA700 700 1.2 2.70 13.9  49.0
AA800 800 1.2 2.82 13.9  49.0
AA900 900 1.2 3.22 13.9  49.0
AA1000 1000 1.2 3.42 13.9  49.0
AA1100 1100 1.2 3.64 13.9  49.0
AA1200 1200 1.2 3.91 13.9  49.0
AA1300 1300 1.2 4.16 13.9  49.0
AA1400 1400 1.2 4.40 13.9  49.0
AA1500 1500 1.2 4.64 13.9  49.0
AA1600 1600 1.2 4.88 13.9  49.0
AA1700 1700 1.2 5.22 13.9  49.0
AA1800 1800 1.2 5.47 13.9  49.0
AA2000 2000 1.2 5.94 13.9  49.0
AA2100 2100 1.2 6.18 13.9  49.0
AA2200 2200 1.2 6.54 13.9  49.0
AA2300 2300 1.2 7.14 13.9  49.0
AA2400 2400 1.2 7.50 13.9  49.0
AA2500 2500 1.2 7.80 13.9  49.0
AA2550 2550 1.2 8.04 13.9  49.0
A 2/3A 600 1.2 2.62 17.0  28.5
2/3A 1100 1.2 3.82 17.0  28.5
10C-2/3A 800 1.2 3.66 17.0  28.5
10C-2/3A 1100 1.2 4.44 17.0  28.5
4/5A 1800 1.2 5.70 17.0  43.0
4/5A 2000 1.2 6.18 17.0  43.0
A 2300 1.2 7.44 17.0  49.0
A 2500 1.2 8.22 17.0  49.0
A 2700 1.2 8.82 17.0  49.0
4/3A 3500 1.2 12.24 17.0  65.0
4/3A 4000 1.2 13.68 17.0  65.0
4/3A 4500 1.2 15.36 17.0  65.0
SC SC 1500 1.2 6.30 22.1  43.0
5c SC 1500 1.2 6.48 22.1  43.0
SC2000 2000 1.2   22.1  43.0
sc2500 2500 1.2 8.40 22.1  43.0
SC2600 2600 1.2 8.64 22.1  43.0
SC3500 3500 1.2 12.36 22.1  43.0
SC4000 4000 1.2 14.16 22.1  43.0
SC4300 4300 1.2 15.96 22.1  43.0
C C2500 2500 1.2 9.84 25.5  50.0
C3500 3500 1.2 12.60 25.5  50.0
C5000 5000 1.2 17.64 25.5  50.0
D D 6000 1.2 21.12 32.4  61.0
D 8000 1.2 27.60 32.4  61.0
D10000 10000 1.2 31.05 32.4  61.0
F F 15000 1.2 52.44 32.0  89.0

Details

Compared with lead-acid battery, the energy density is greatly improved, with weight energy density of 65Wh/kg and volume energy density of 200Wh/L.

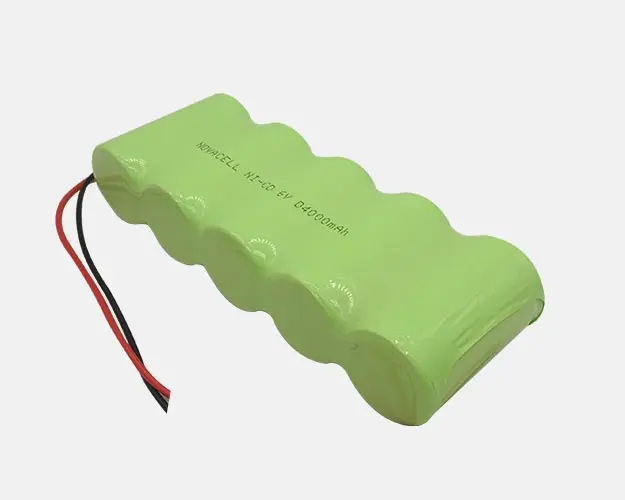

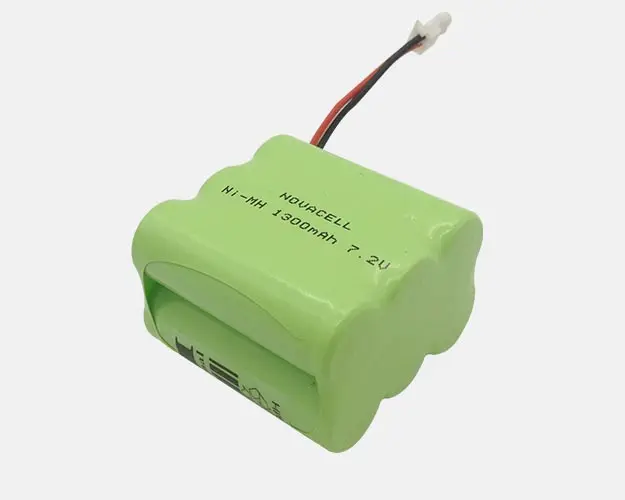

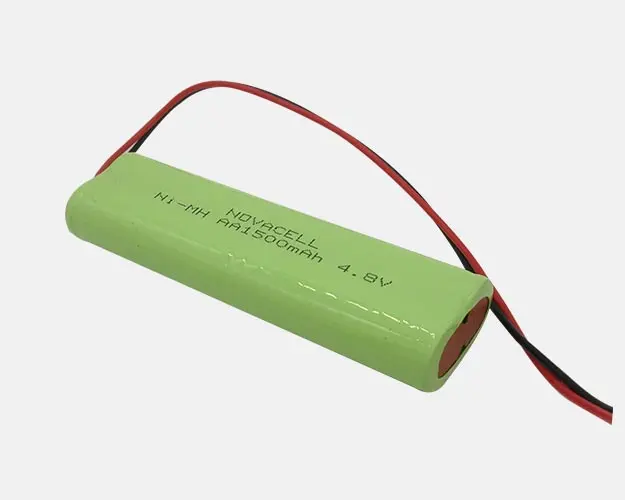

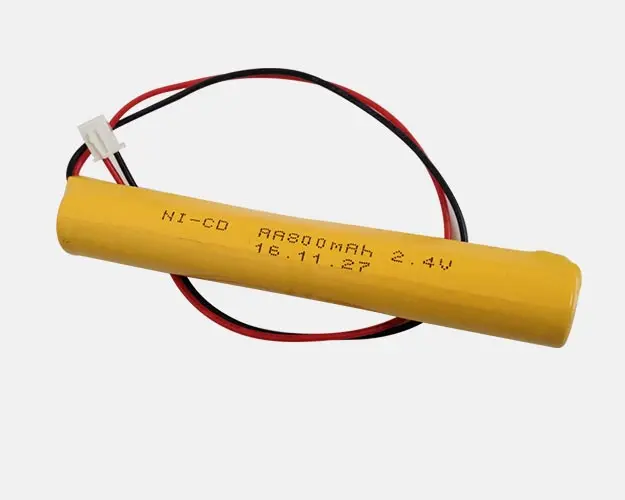

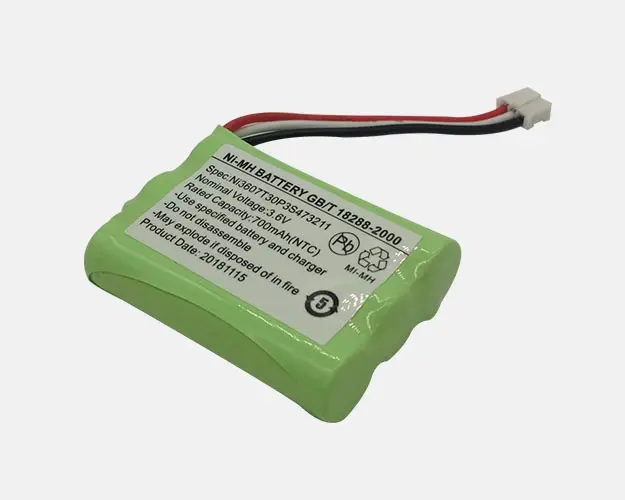

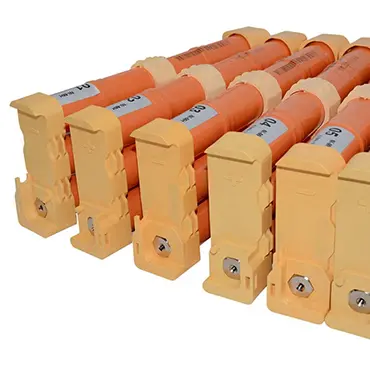

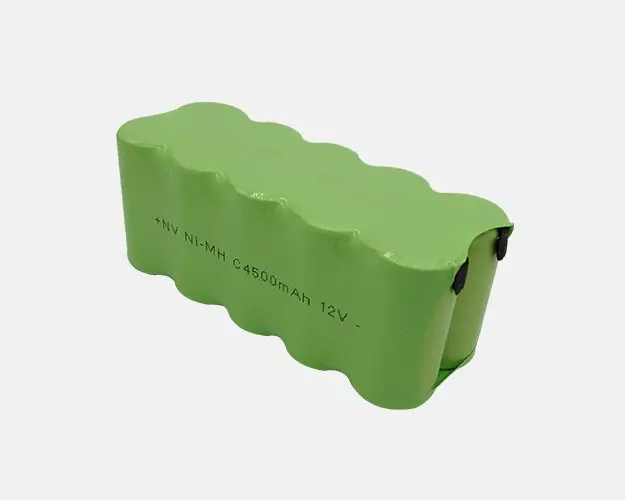

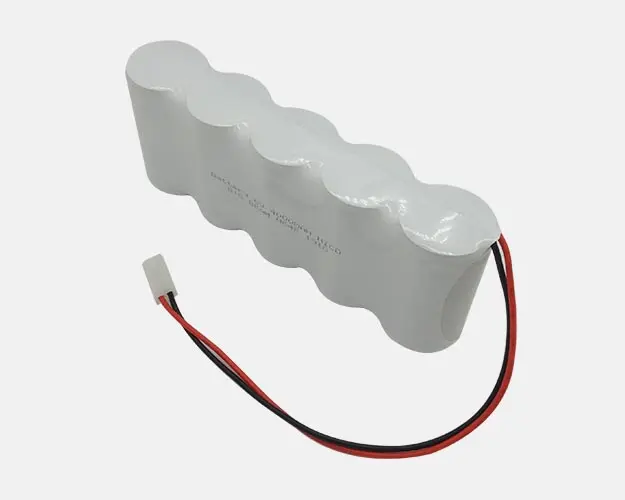

Photo Exhibition
