| Electrical Characteristics | Nominal Voltage | 3.7V |
| Nominal Capacity | 850mAh | |
| Energy | 3.15Wh | |
| Cycle life | 550 cycles @0.2C 100%DOD | |
| Internal Impedance | ≤60mΩ | |
| Charge | Standard charge current | 0.2C |
| Maximum charge current | 0.5C | |
| Charge voltage | 4.2±0.2V | |
| Charge Mode | 0.2C CC to 4.2V, then 4.2V CV,charge current to 0.02C (CC/CV) | |
| Charge cutoff Voltage | 4.2V | |
| Discharge | Standards discharge current | 0.2C |
| Maximum continuous discharge current | 1C | |
| Pulse discharge current | 1.5C | |
| Discharge cutoff voltage | 3.0±0.2V | |
| Operating Condition | Charge temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
| Discharge temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity | |
| Storage temperature | Less than 3 months:-20°C~ 45°C; Less than 1 year:-20°C~ 25 °C | |
| Mechanical | Combination | 1S1P |
| Dimension | T6.0*W30*L50mm with PCM | |
| Housing | Alumimum Foil | |
| N.W. | 18g | |
| PCM | Included | |
| Cable | Included | |
| Connector, NTC | TBA | |
| Switch,Indicator,display | TBA | |
| Step-up/Step-down | TBD |

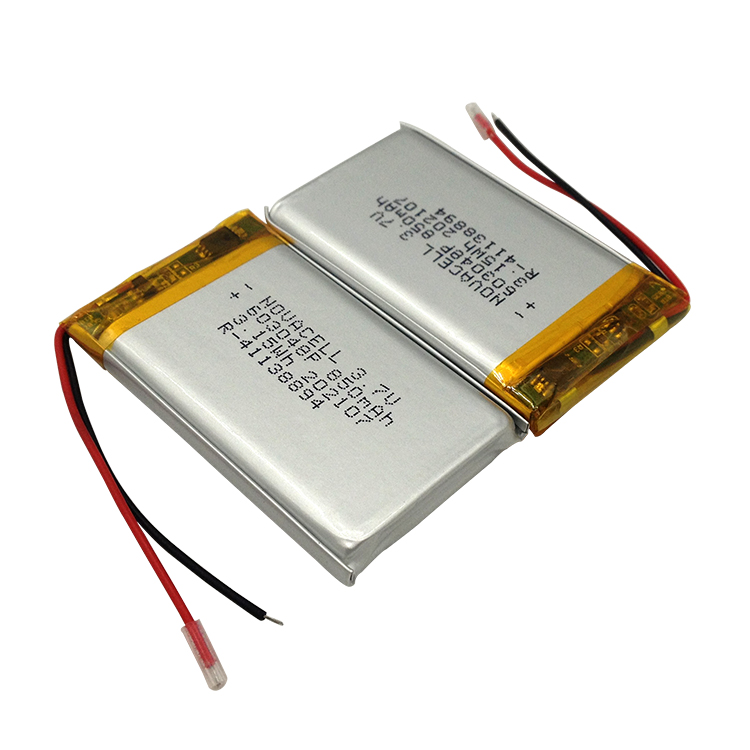

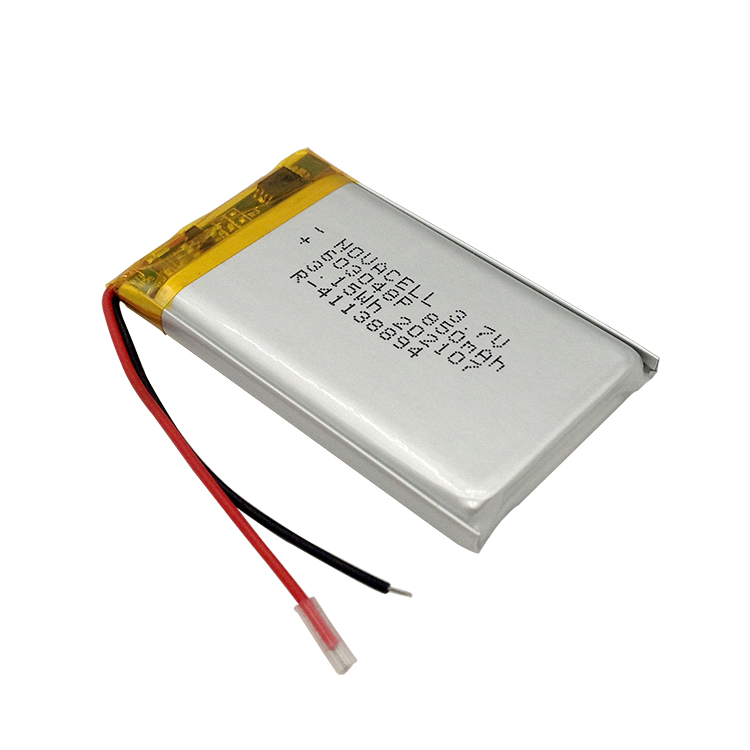

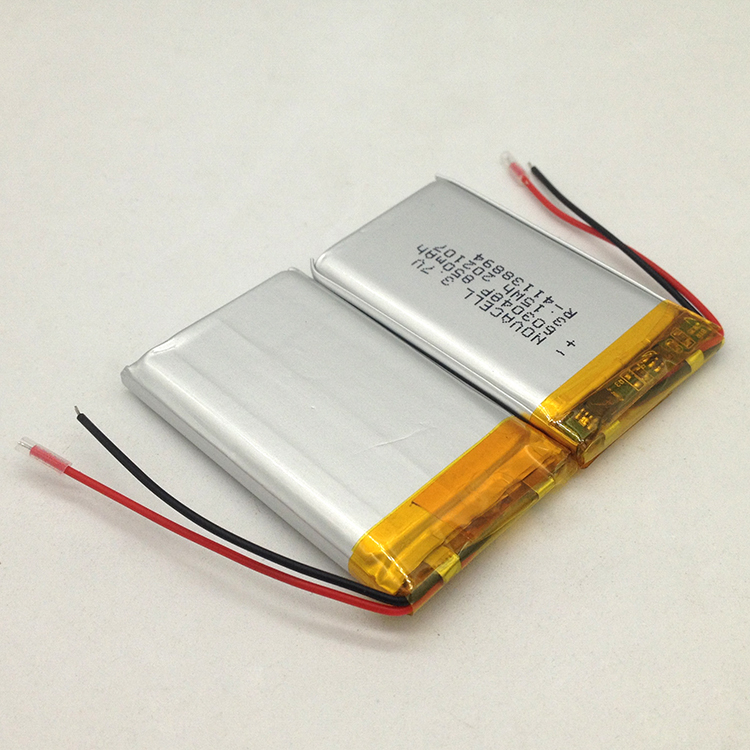

This model 603048P is very popular in the application of GPS tracker and medical devices, we can customize the working temperature according to different environment requirements

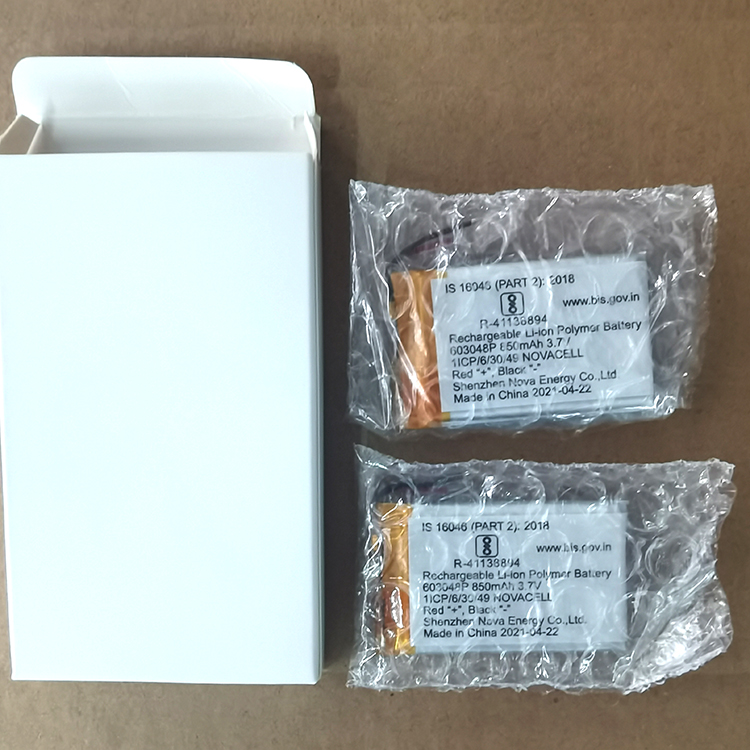

603048P lipo battery is BIS,KC and IEC62133 certified, it’s a high temperature battery, can working in 0-85°C, capacity could be 900mAh at 3.7V 0.2C
