80kWh 100kWh 128kWh 150kWh 200kWh 250kWh 100KW high voltage lifepo4 storage battery

Inquire Now

Description

Model No.: NV-CSS125KWh50KWLFPP
Brand name: NOVACELL
Battery type: LiFePO4
Electricity grid: OFF/ON/Hybrid grid
Dimension: 1520x1270x2125mm
Weight: 2000KG
Communication: RS485 RS232 CAN
IP Rate: IP54

Advantages

Power type: Solar, Electricity, Diesel
Output Power: 50W/100W
Battery & PV & Grid & Load: Integrated
Module Design: Easy installation Maintenance
High Performance cells: Safety, High consistency
Multiple Security Protection: Battery, BMS, Fire protection
Switching Power OFF: Save Power
BMS, EMS, PCS: Integrated

Application

Solar power battery storage
Electric power storage
Home energy storage
Industrial commercial energy storage
Home energy storage system
Container energy storage system
Household energy storage
Industrial energy storage system

Specification

Battery Pack Parameters	Cell/Module type	LFP(3.2V280Ah)/64V280Ah(17.92KWh)
	Number of Moduels	7pcs
	System Energy	125KWh
	Rated Voltage	448V
	Voltage Range	406~490 (Cell: 2.9-3.5)
PV Input Parameters	Max. Input Power/Voltage	50KW 1000V
	MPPT Voltage Range	250~850V
	MPPT Number of Channels/ Max.Current	1/130A
ON/OFF Grid Parameters	Rated Output Power	50KW
	Max. Output Current	72A
	Rated Output Voltage /Frequency	400V(3L*N+PE) / 50Hz
	Overload Capacity	110%, long-term
	Battery & PV	Integrated
	Grid & Load	Integrated
System Parameter	Rated Charge and Discharge Power	50KW
	Dimensions(WDH)	152012702125
	Cooling	Forced Air
	Fire Fighting	Perfluorohexanone
	Operating Temperature /Humidity	-20~50℃/5%~95%RH
	Altitude	≤2000M
	Life cycle	EOL 70% ≥6000

More Details

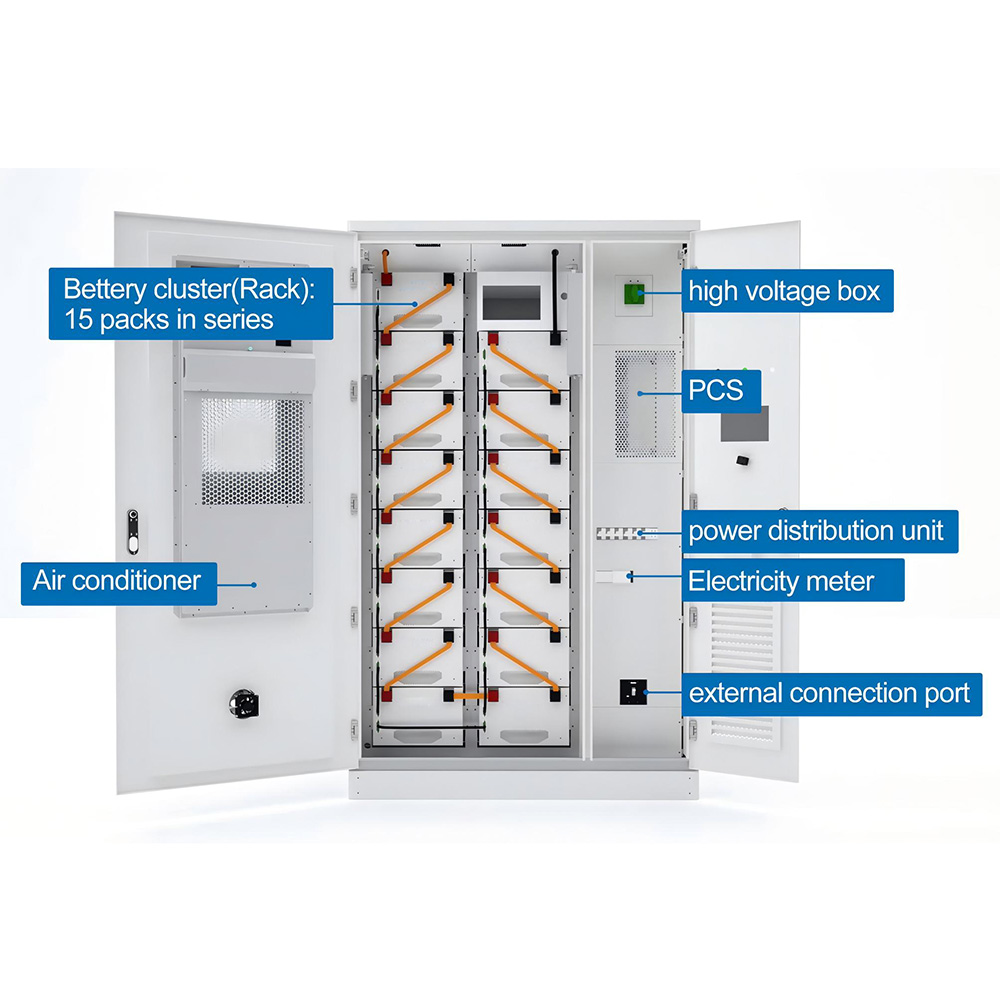

80kWh 100kWh 128kWh 150kWh 200kWh 250kWh 100KW high voltage lifepo4 storage battery is very popular for industrial commercial energy storage and home energy storage, this battery contains MPPT, PCS, BMS, EMS, Fire fighting protection, Cooling and ect., it's very safe to run average 10+ years, this battery can be charged by PV, Electricity, Diesel and Wind, Output AC220V/380V 50/100KW, this battery can be customized according to different requirements
