| Electrical Characteristics | Nominal Voltage | 3.7V |
| Nominal Capacity | 5000mAh | |
| Energy | 18.5Wh | |
| Battery type | Lipo | |
| Cycle Life | 550+ cycles | |
| Months Self Discharge | ≤3% per month at 25℃ | |
| Standard Charge | Charge Voltage | 4.2±0.2V |
| Charge Mode(CC/CV) | At 0℃~45℃, charged to 4.2V at constant current of 0.2C5A, and then change continuously with constant voltage of 4.2V until the current was not more than 0.02C5A. | |
| Standard Charge Current | 2500mA | |
| Max.Charge Current | 5000mA | |
| Standard Discharge | Standard discharge Current | 2500mA |
| Max. Discharge Current | 5000mA | |
| Discharge Cut-off Voltage | 2.75V | |
| Environmental | Charge Temperature | 0℃~45℃ |
| Discharging | -10℃~60℃ | |
| Storage temperature | -5℃~35℃ | |
| Storage Humidity | ≤75% RH | |
| Water Dust Resistance | IP50 | |
| Mechanical | Cell | Singe cell + PCM |
| Housing | Aluminum Foil | |
| Dimension(L*W*H*) | T8*W55*L92mm | |
| PCM | TBA | |
| N.W.: | Approx. 100g |
805590, 806090,5000mah battery, lithium battery 5000mah,7.4v 5000mah lithium battery pack,hly 3.7v 5000mah cells,lipo 5000mah,lipo battery 5000mah 7.4v,battery 123780 5000mah 7.4v,5000mah lipo battery,5000mah tablet battery 7.4v

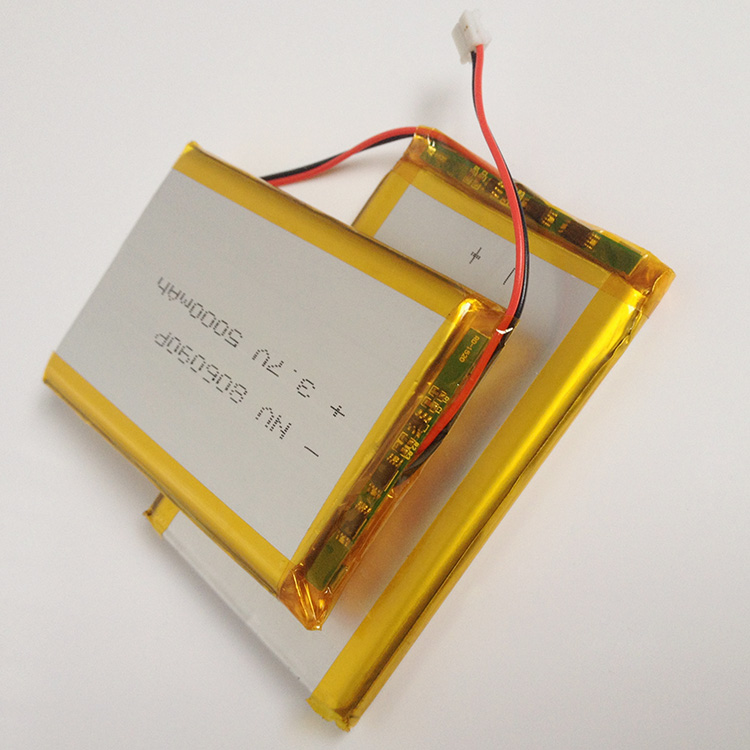

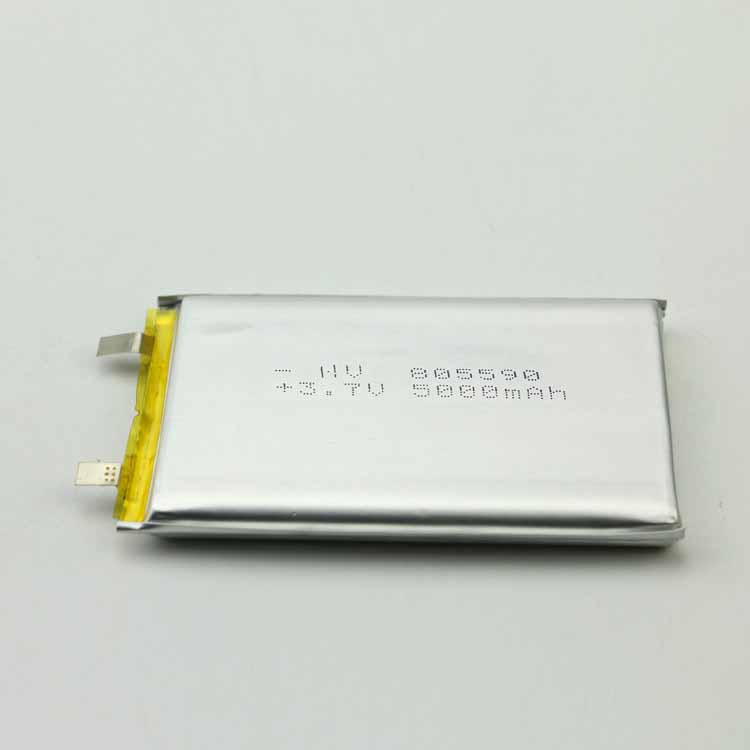

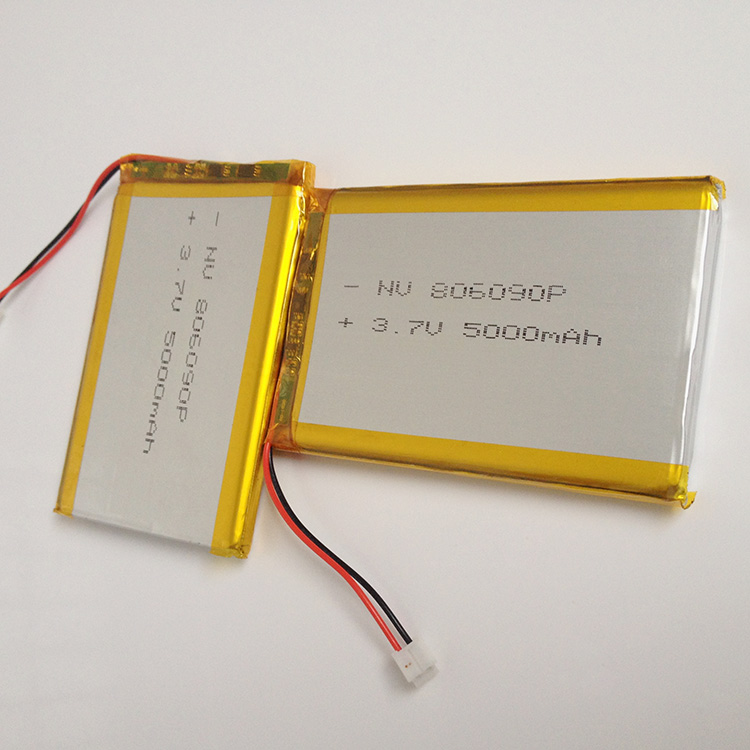

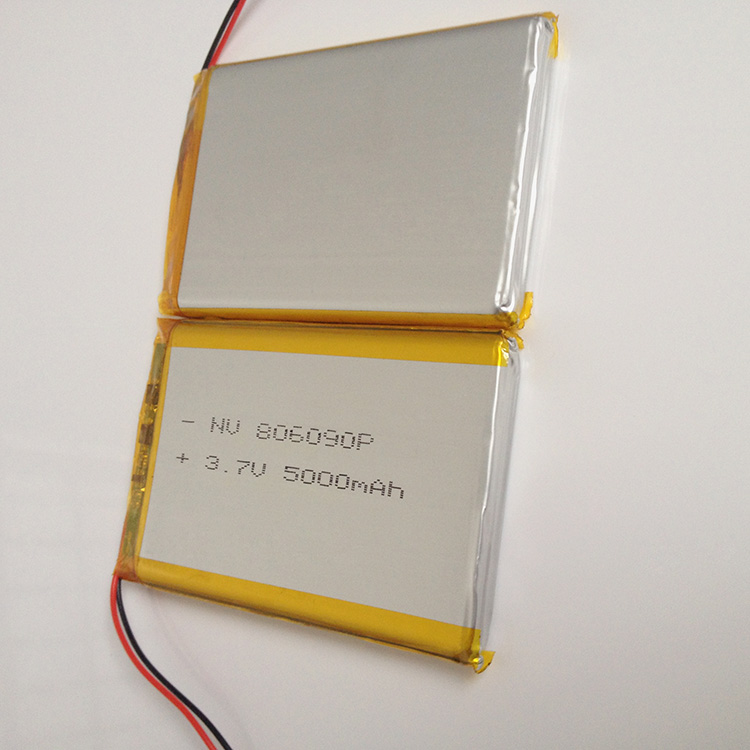

805590 806090 123780 lipo lithium polymer battery 3.7V 5000mah cells pack is very popular for power bank, tablet, mini portable fan, neck fan, hand fan, Bluetooth, speaker, router and ect, it could be 7.4V or only cell
