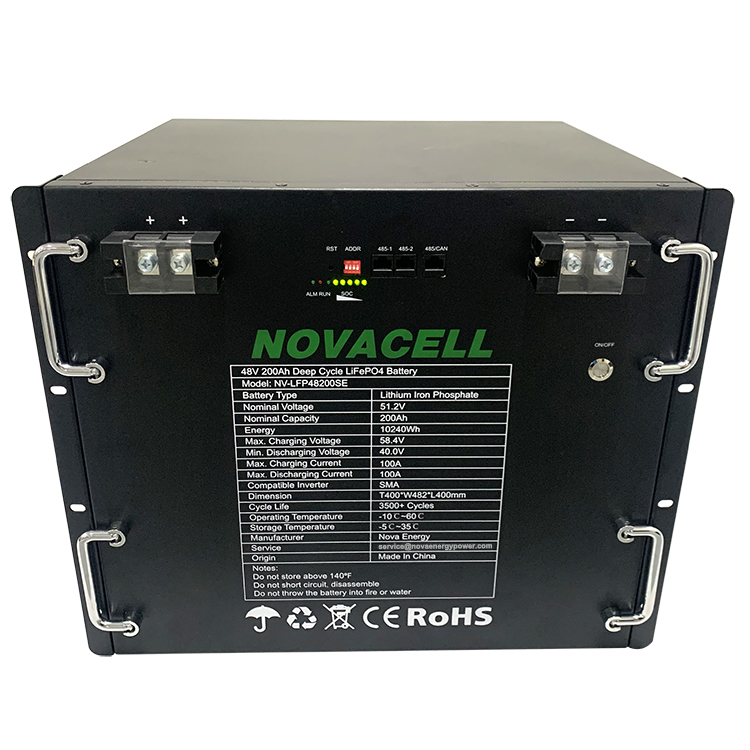

48V 200AH 300AH Lifepo4 Battery Pack for Solar Storage

  • Brand Name: NOVACELL
  • Model Number: NV-LFP48V200AH
  • Voltage: 48V
  • Color:Black white or custom
  • Capacity: 200AH 300AH
  • Warranty: 3 Years
  • Features: Deep Cycle Battery
  • OEM/ODM: Avaiable
  • Shell material: ABS / ABS V0 (optional)
  • Certification: CE RoHS MSDS

Advantages

High power LiFePO4 Battery Module 48Volt Solar Power Systems Battery Storage 48v100Ah is built-in high quality BMS battery management system, which can manage and monitor cells information ,including voltage, current and temperature etc. Also, our BMS can balance cells charging and discharging to extend cycle life. Multiple batteries can connected in parallel to expand capacity and power in parallel for larger capacity and longer power. Compatible with multiple communication modes of R232, RS485 and CANBus can meet the requirement of several packages to connect in parallel. Master & Slave relationship, Monitor and and other prolongation functions.

NOVA LiFePO4 series is a complete range of 48V LiFePO4 (Lithium Iron phosphate) battery products, for a wide variety of applications,such as telecom base station, UPS, renewable energy system, etc., with advanced life, standard size, light weight and strong environmental adaptability.

Application

1. Golf trolleys, Golf carts,

2. UPS backup

3. Fire alarm and security systems

4. Telecommunication equipment

5. Electric equipment and telemeter equipment

6. Light equipment, dc 12v led lights

7. Wireless lawn movers vacuum cleaner and washing machine

8. Toys and consumer electronics

9. Solar systems

10. Portable power tools measuring and medical equipment

11. Portable video camera portable personal computer

12. Garden lighting

13. Sound systems

Specification

Item 48V 200AH lifepo4 battery pack (Customizable LCD)
Brand NOVACELL
Type Lithium Iron Phosphate
Voltage Nominal 48V (Customized 3.2V 12V 24V 36V 48V 72V…720V)
Capacity Nominal 200AH(250AH 300AH)
Max Charge Current 75A Or Customized
Weight 82kg Or Customized
Dimension 442*520*320mm Or Customized
Operating Temperature Range Charge:0°C to 45°C
Discharge: -20°C to 60℃
Life Cycle More than 2000cycles @1.0C 100% DOD
Package ABS/Metal Case Or Customized
Customized Shell, Size, Weight, Color, Label, Current, Bluetooth, LED Display, Technology,etc can be customized

Details

(1) Compared with VRLA battery with the same capacity, low load-bearing requirements save installation space
(2) The battery pack is equipped with a BMS management system, which is rich in functions and can realize convenient battery management by cooperating with the upper computer software
(3) The charging and discharging parameters need not be adjusted to match the original switching power supply system in the machine room
(4) Compatible with multiple communication modes of R232, RS485 and CANBus
(5) A variety of installation and use modes are designed, which can meet the requirements of diversified application scenarios, such as standard cabinet, wall hanging, pole holding, landing, strap, lever box, etc
