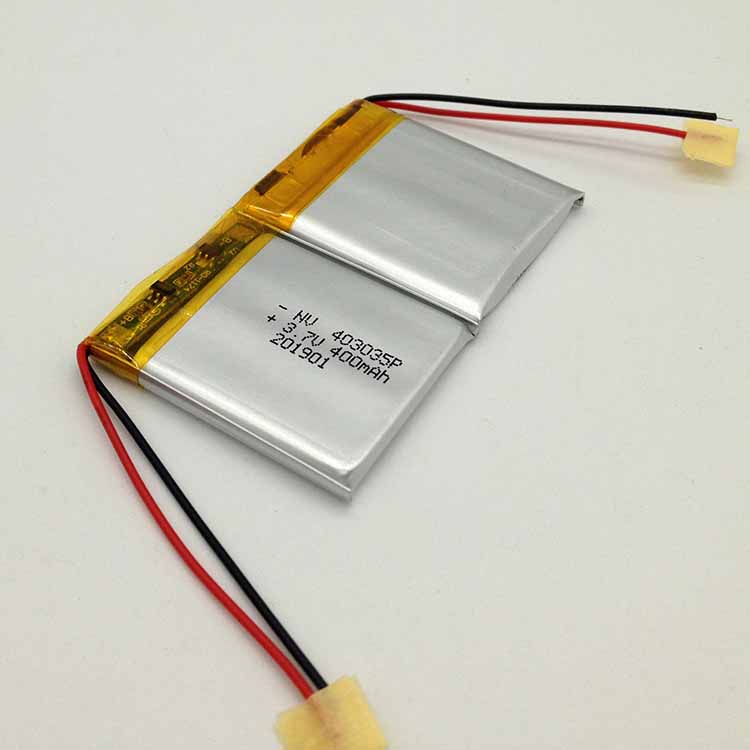

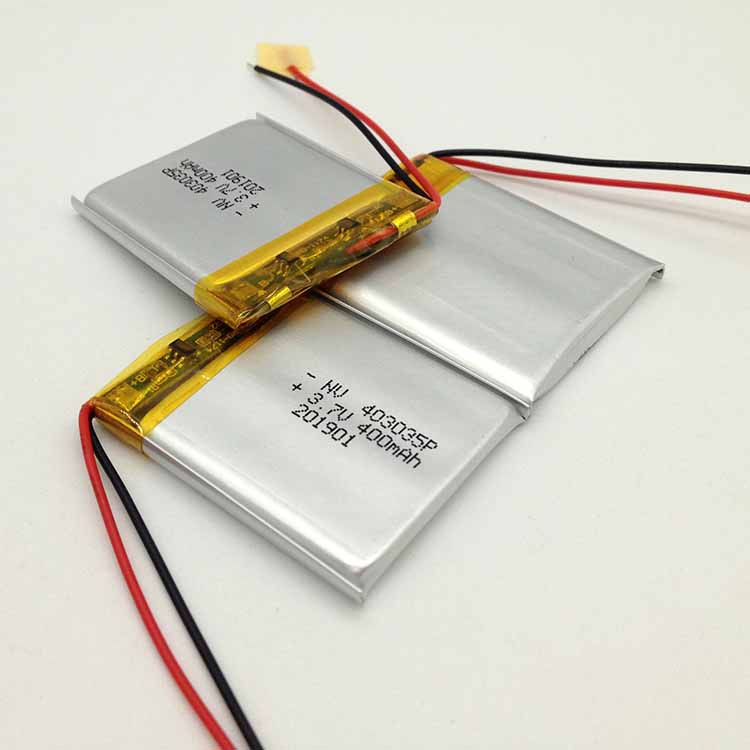

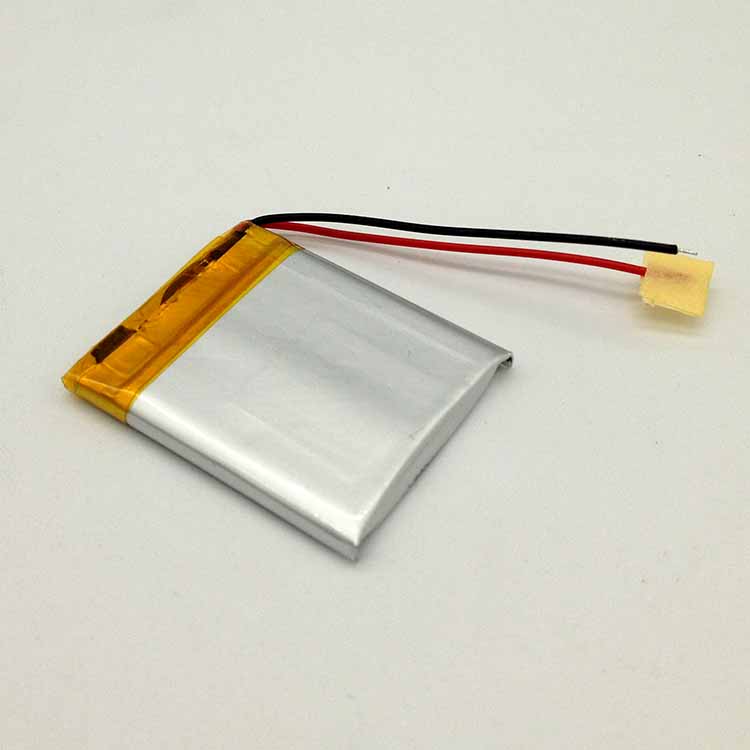

403035 3.7V 390mah 400mAh 1.48wh polymer li ion rechargeable battery for smartwatch power bank

Inquire Now

Features

Anode: NMC
Brand: NOVACELL
Model: 403035P
Energy: 1.48Wh
N.W.: 8g
Charge rate: 1C
Discharge rate: 1C
Size: T4*W30*L35mm

Advantages

Self discharge rate: Lowest
Life cycle: 600+ life cycles
Warranty: 13+ months
'Quality: Grade A
Working temp: -10~65°C
Certif: BIS KC CB CE IEC62133 RoHS UN38.3

Application

Smart watch
Meter
Power bank
Remote controller
Earphone
Speakers

Specification

Electrical Characteristics	Nominal Voltage	3.7V
	Nominal Capacity	400mAh
	Energy	1.48Wh
	Battery type	Lipo
	Cycle Life	550+ cycles
	Months Self Discharge	≤3% per month at 25℃
Standard Charge	Charge Voltage	4.2±0.2V
	Charge Mode(CC/CV)	At 0℃~45℃, charged to 4.2V at constant current of 0.2C5A, and then change continuously with constant voltage of 4.2V until the current was not more than 0.02C5A.
	Standard Charge Current	200mA
	Max.Charge Current	400mA
Standard Discharge	Standard discharge Current	200mA
	Max. Discharge Current	400mA
	Discharge Cut-off Voltage	3.0V
Environmental	Charge Temperature	0℃~45℃
	Discharging	-10℃~65℃
	Storage temperature	-5℃~35℃
	Storage Humidity	≤75% RH
	Water Dust Resistance	IP50
Mechanical	Cell	Singe cell + PCM
	Housing	Aluminum Foil
	Dimension(LWH*)	T4W30L35mm
	PCM	TBA
	N.W.:	Approx. 8g

More Details

403035 3.7V 390mah 400mAh 1.48wh polymer li ion rechargeable battery is very popular for smartwatch, meter, remote controller, earphone, speakers, power bank and led light, it could be 7.4V, 11.1V
