| Electrical Characteristics | Nominal Voltage | 3.7V |
| Nominal Capacity | 45mAh~50mAh | |
| Energy | 0.17Wh | |
| Battery type | Lipo | |
| Cycle Life | 550+ cycles | |
| Months Self Discharge | ≤3% per month at 25℃ | |
| Standard Charge | Charge Voltage | 4.2±0.2V |
| Charge Mode(CC/CV) | At 0℃~45℃, charged to 4.2V at constant current of 0.2C5A, and then change continuously with constant voltage of 4.2V until the current was not more than 0.02C5A. | |
| Standard Charge Current | 9mA | |
| Max.Charge Current | 45mA | |
| Standard Discharge | Standard discharge Current | 9mA |
| Max. Discharge Current | 900mA(20C) | |
| Discharge Cut-off Voltage | 3.0V | |
| Environmental | Charge Temperature | 0℃~45℃ |
| Discharging | -10℃~65℃ | |
| Storage temperature | -5℃~35℃ | |
| Storage Humidity | ≤75% RH | |
| Water Dust Resistance | IP50 | |
| Mechanical | Cell | Singe cell + PCM |
| Housing | Aluminum Foil | |
| Cell Dimension(L*W*H*) | T2.7*W10*L30mm | |
| PCM | TBA | |
| N.W.: | Approx. 0.9g |

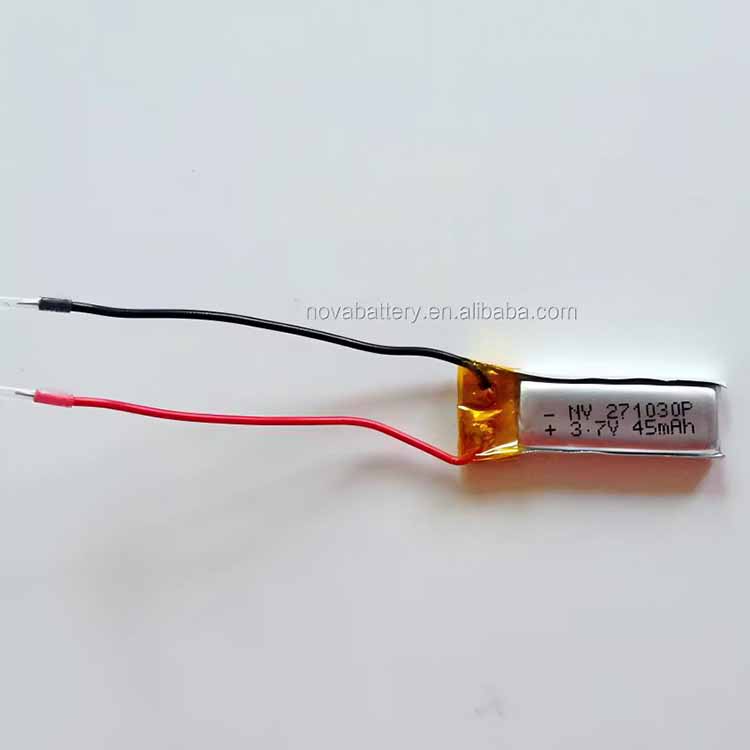

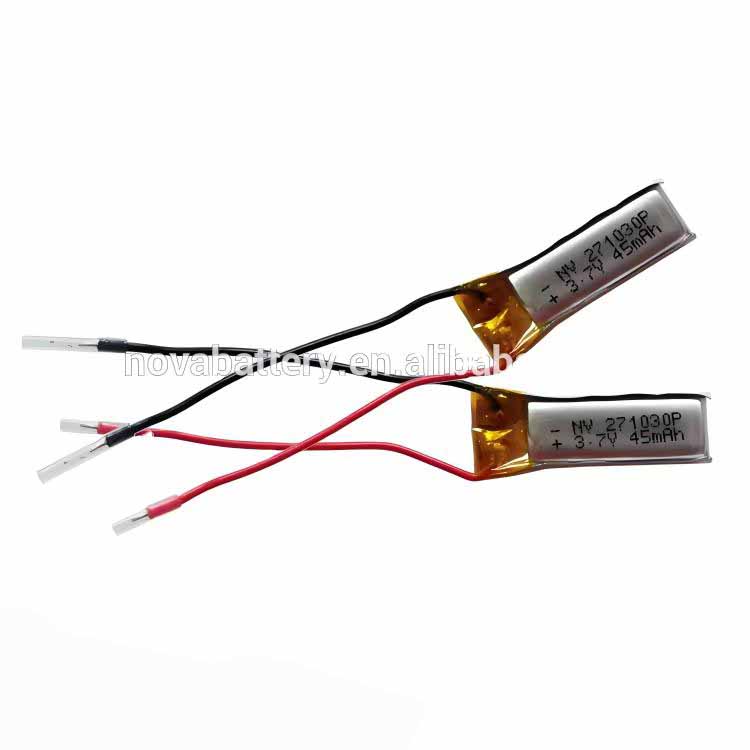

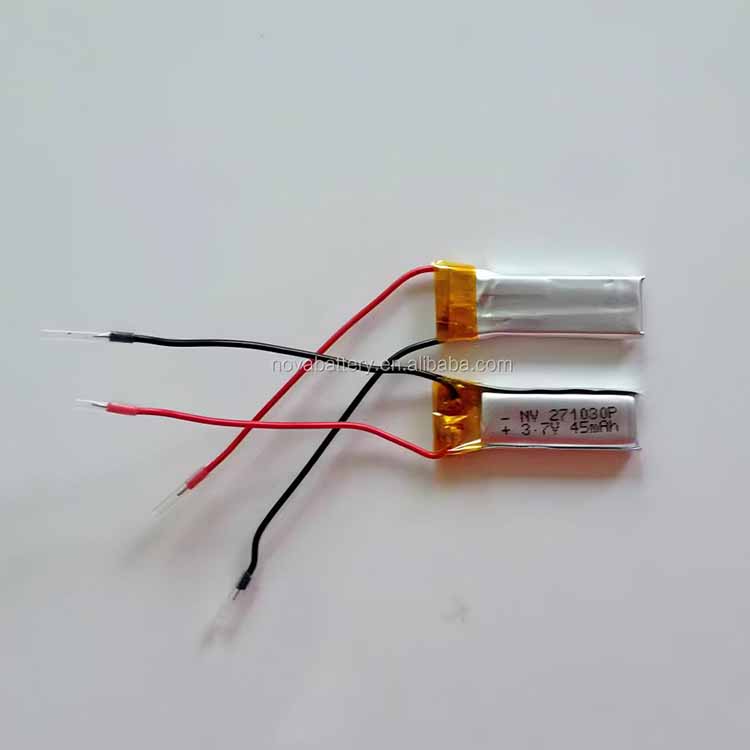

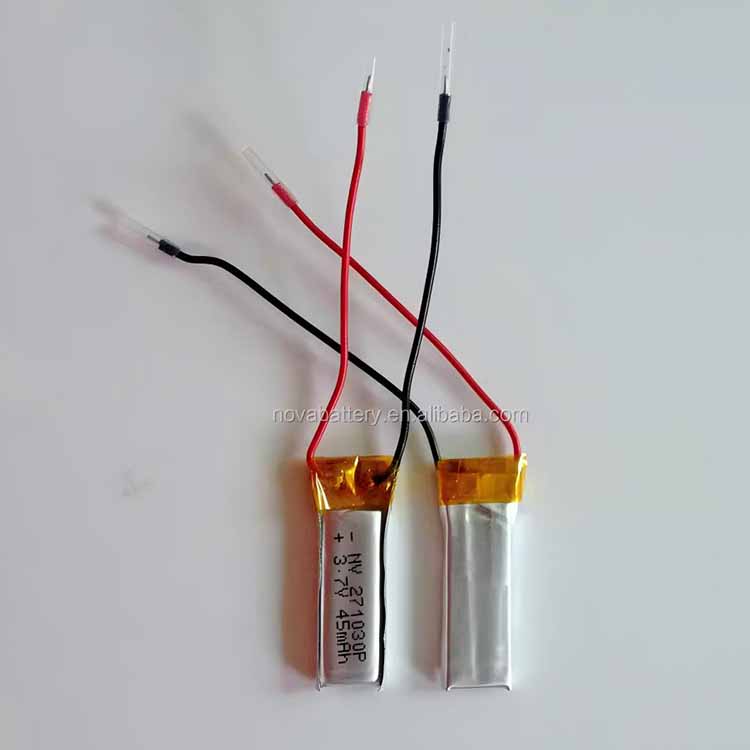

271030 300930 is ultra slim lipo battery, it's 3.7V 45mAh to 50mAh, 20C high discharge rate, very suitable for medical device, band, controller, light, reader and other devices require high discharge rate with small compartment
slim battery 3.7v,slim lipo battery,slim-battery-3.7v,bateria 3.7v 45mah,3.7v 45mah li polymer battery,battery 3.7v 45mah,45mah battery,3.7v 45mah battery,3,7 v 45mah lipo batterie,small 3.7v 45mah lithium polymer ion battery,20c lipo battery 3.7v 50mah
