NOVACELL Battery, Green planet, Better Life
1. Same capacity but much smaller size than lead acid battery
2. No memory,feel free to charge when you need,maintenance-free.
3. 3500+ cycle life at standard charge/discharge rate
4. REMA/ANDERSON plug for choice
5. Applicabale -20~55℃,and smart BMS provide high or low temerature protection
6. Support buzzer alaram while SOC<10% or min volt of singel cell<3.05V
7. CAN/RS485/RS232 communication for choice
8. Perfect safety performance,NO leakage,No swell
9. Protection board, provides protection against overcharge, and short circuit, through monitoring single string of cells
Electric Forklift
Golf Carts
Electric vehicles
| Item | 24V 500Ah | 48V 500Ah | 48V 500Ah | 48V 500Ah | 24V 200Ah | 24V 200Ah | 24V 200Ah |
| Battery type | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 |
| BMS | Included | Included | Included | Included | Included | Included | Included |
| Forklift | LindeStill R 50-10L | LindeStill R 20-16P | LindeStill RX 20-16 | TCM FB 20-7 | LindeStill EGV - 12 |
LindeStill EXV - 12 |
LindeStill EGV - 132 |
| Battery size | 830х435х630 mm | 820х630х630 mm | 990х525х630 mm | 1020х780х490 mm | 400х290х570 mm |
660х150х690 mm |
400х290х570 mm |
| Battery G.W. | 620Kg | 869 kg | 890 kg | 930kg | 187 kg | 190 kg | 187 kg |
| Port for forklift | PEMA 160A | PEMA 160A | PEMA 160A | Anderson SB 350A 600V | PEMA 80A | PEMA 80A | PEMA 80A |
| Port for charger | GermanyREMA320 | GermanyREMA320 | GermanyREMA320 | GermanyREMA320 | GermanyREMA320 | GermanyREMA320 | GermanyREMA320 |
| Charging Indicator | With | With | With | With | With | With | With |
| Handle | With | With | With | With | With | With | With |
| Accessories | Anderson SB 50A 600V connector, Max. Power 500W | Anderson SB 50A 600V connector, Max. Power 500W | Anderson SB 50A 600V connector, Max. Power 500W | Anderson SB 50A 600V connector, Max. Power 500W | Anderson SB 50A 600V connector, Max. Power 500W | Anderson SB 50A 600V connector, Max. Power 500W | Anderson SB 50A 600V connector, Max. Power 500W |
| With standard charger, automatic recovery from deep discharging cut-off | With standard charger, automatic recovery from deep discharging cut-off | With standard charger, automatic recovery from deep discharging cut-off | With standard charger, automatic recovery from deep discharging cut-off | With standard charger, automatic recovery from deep discharging cut-off | With standard charger, automatic recovery from deep discharging cut-off | With standard charger, automatic recovery from deep discharging cut-off | |
| Working temp. | -30 ° C to + 40 ° C | -30 ° C to + 40 ° C | -30 ° C to + 40 ° C | -30 ° C to + 40 ° C | -30 ° C to + 40 ° C | -30 ° C to + 40 ° C |
-30 ° C to + 40 ° C |

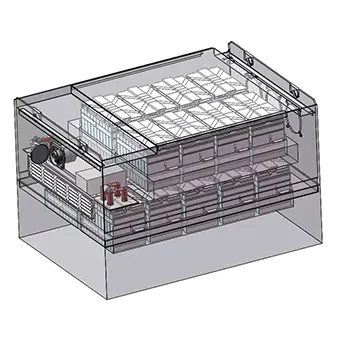

Battery pack
composed by 96PCS 36130190-60AH cells, 6parallels and 16serial, make a battery PACK.
Battery Management System
The protection board, provides protection against overcharge, and short circuit, through monitoring single string of cells
charge and discharge standard
· Cell adopted: 36130190-60AH.
· Constant charge current: 0.5 CA is the best. cell max voltage<3.65V.
· Constant discharge current: cell min voltage> 2.75/2.5V
