| Electrical Characteristics | Nominal Voltage | 24V |
| Nominal Capacity | 20Ah | |
| Energy | 512Wh | |
| Battery type | LiFePo4 | |
| Cycle Life | 6000+ cycles | |
| Months Self Discharge | ≤3% per month at 25℃ | |
| Standard Charge | Charge Voltage | 29.2±0.2V |
| Charge Mode(CC/CV) | At 0℃~45℃, charged to 29.2V at constant current of 0.2C5A, and then change continuously with constant voltage of 29.2V until the current was not more than 0.02C5A. | |
| Standard Charge Current | 10A | |
| Max.Charge Current | 20A | |
| Standard Discharge | Standard discharge Current | 10A |
| Max. Discharge Current | 60A | |
| Discharge Cut-off Voltage | 20V | |
| Environmental | Charge Temperature | 0℃~45℃ |
| Discharging | -10℃~60℃ | |
| Storage temperature | -5℃~35℃ | |
| Storage Humidity | ≤75% RH | |
| Water Dust Resistance | IP65 | |
| Mechanical | Cell | 8S4P |
| Housing | ABS | |

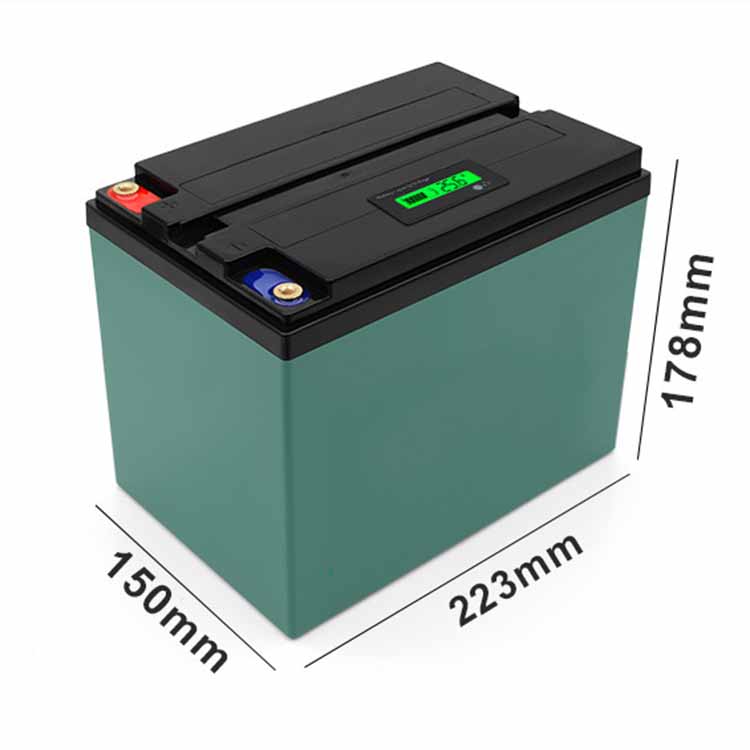

| Dimension(L*W*H*) | T150mm*W178mm*L223mm/Custom | |
| BMS | Included | |
| N.W.: | Approx. 6.8kg | |
| Software | Bluetooth |
24V 20Ah 24Ah 30Ah Lithium lifepo4 battery pack is very popular for Home Marine Caravan, it could be IP65 waterproof and controlled by App, it's dimension can be customized, it can be used for both energy storage and electric vehicle
24v lifepo4 battery,24v lithium battery,lifepo4 battery 24v,lifepo4 24v,24v battery,24v battery pack,24v 20ah lithium battery,24v 20ah battery,24v 30ah battery,lifepo4 battery 24v 50ah,battery 24v 10ah,24v 20ah lithium battery,24v 12ah lithium battery,24v 24ah battery
