16.28Wh lithium polymer USB battery 103450 654060 3.7V 2S 7.4V 2200mAh 2600mAh 4000mAh for heated gloves clothing

Inquire Now

Features

Anode: NCM
Brand: NOVACELL
Model: 654060P 704060P
Energy: 16.28Wh
Charge current: 1C
Discharge current: 1C
Voltage: 7.4V
Capacity: 2200mAh

Advantages

Cycle life: 550+ cycles
PVC: Soft Matt black
Appearance: Elegant
PCM: Strong
Insulation: Overall
Safe level: Highest
Price: Economical
Certificate: CE RoHS BIS KC CB IEC UN38.3

Application

Heated gloves
Heated clothing
Bike light
Heated shoes
Heated Jackets
Heated socks
Heated Blankets

Specification

Electrical Characteristics	Nominal Voltage	7.4V
	Nominal Capacity	2200mAh
	Energy	16.28Wh
	Battery type	Lipo
	Cycle Life	550+ cycles
	Months Self Discharge	≤3% per month at 25℃
Standard Charge	Charge Voltage	8.4±0.2V
	Charge Mode(CC/CV)	At 0℃~45℃, charged to 8.4V at constant current of 0.2C5A, and then change continuously with constant voltage of 8.4V until the current was not more than 0.02C5A.
	Standard Charge Current	1100mA
	Max.Charge Current	2200mA
Standard Discharge	Standard discharge Current	1100mA
	Max. Discharge Current	2200mA
	Discharge Cut-off Voltage	6.0V
Environmental	Charge Temperature	0℃~45℃
	Discharging	-10℃~65℃
	Storage temperature	-5℃~35℃
	Storage Humidity	≤75% RH
	Water Dust Resistance	IP50
Mechanical	Cell	Singe cell + PCM
	Housing	Aluminum Foil
	Cell Dimension(LWH*)	T13W40L60mm
	PCM	TBA
	N.W.:	Approx. 88g

More Details

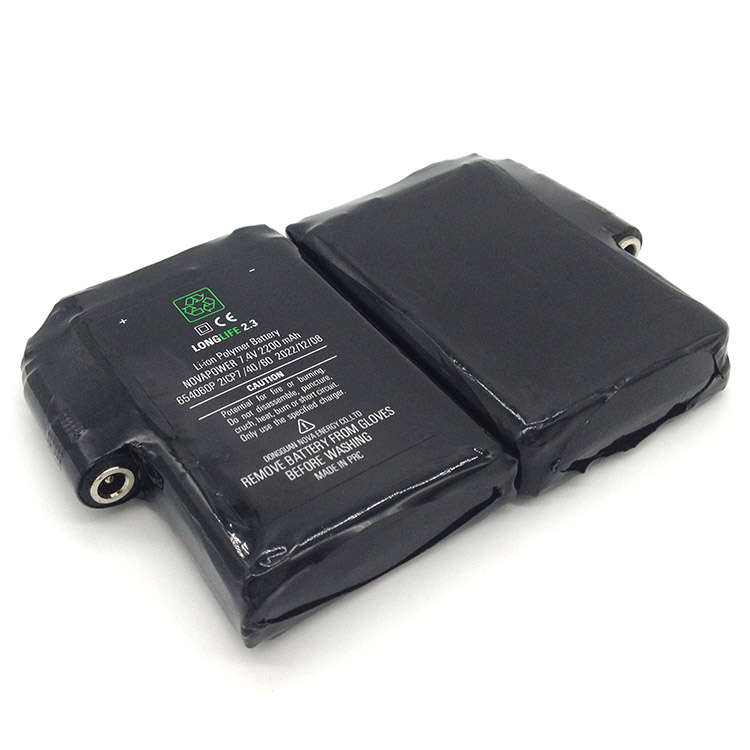

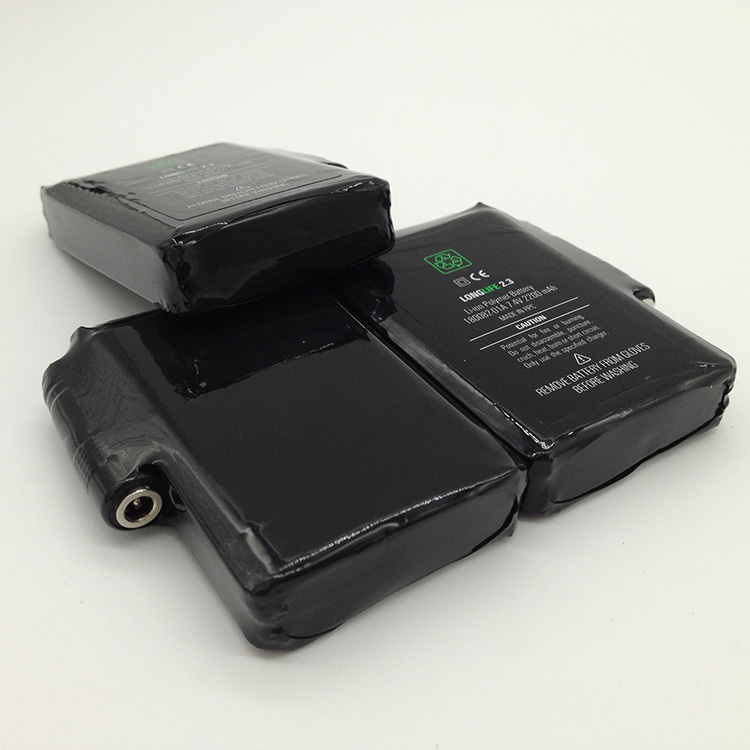

16.28wh lithium battery 7.4v 2200mah heated gloves rechargeable battery is well designed per the hardest situation, it could be made as 3.7V, 11.1V 2000mAh 3000mAh and 4000mAh, the PVC is matt black and soft, and it could be covered by silicon PVC, this battery is very popular for gloves, jackets, socks, blankets and ect.

Photo Exhibition

heated gloves rechargeable battery,heated gloves with battery,unisex waterproof fast heating hand warmer electric heated gloves with battery box for motorcycle skiing hiking and hunt,heat gloves battery,battery heated gloves,thermal heated gloves battery,rechargeable battery for thermal heated gloves,16.28wh lithium battery 7.4v 2200mah,7.4v 2200mah battery for gloves,7.4v 2200mah battery for clothing,battery 7.4v 2200mah for heated gloves
